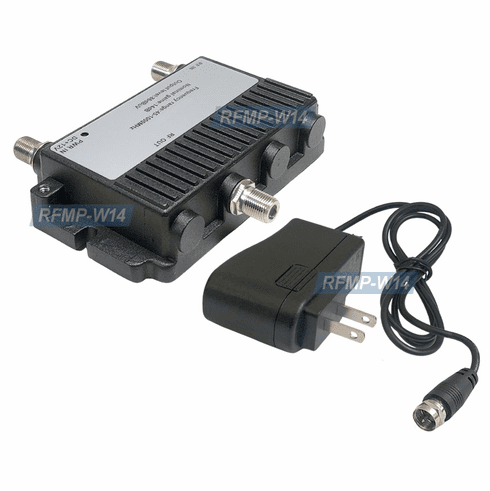

Mini RF Booster Drop Amplifier With 14dB Gain

Premium Indoor Active Type 1000Mhz CATV Amplifier With 14dB Boost For UHF VHF CATV Antenna FM Channels
This indoor RF amplifier helps eliminate weak or spotty cable or antenna TV reception and restores signal integrity with minimal noise and maximum clarity.

Engineered to boost RF signals for longer coaxial cable runs, multiple splits, or signal degradation.

Easily extend the cable TV signal for another 750FT or 230m if RF TV source signals have fair 70 to 75dB strength to start with.

This RF TV amplifier compensates the signal loss resulting from the long coax cable run, outdated wiring or the splitter to make your cable TV system, indoor TV antenna or FM antenna signal with solid and clear quality.

Great signal booster for applications in:

• Analog and Digital CATV System
• Aerial antenna for DTV broadcast
• Commercial MATV System
• CCTV surveillance channels
• FM radio system

It is also built with integrated transformer and fuse inside the amplifier.

High Gain 14dB Boost
This unit is featured with 14 dB boost for RF input signals to compensate the RF TV signal loss and attenuation after long cable transmission.

Users can easily extend the cable TV signal for another 750FT or 230m if RF TV source signals have fair 70 to 75dB strength to start with.

So more TVs can be added in office building or residence home with more splitters or longer cable used.

Wide Operation Frequency Range
This RF signal amplifier has a wide operation frequency range from 10 MHz to 1000MHz.

It can provide continuous amplification on all digital/analog cable TV signals, over-the-air digital TV signals, analog UHF/VHF signal and FM radio signals.

Double As Drop Amplifier
This unit can be used as a drop amplifier and it has AC power transformer built in already, much better in operation efficiency than those passive non-powered type drop filters.

Super Low Noise Figure
Noise figure is a measurement of the amount of noise being generated by the amplifier.

This CATV amplifier provides an industry-leading low noise amplification and low flatness rating of 1.5 dB, resulting in a stable signal quality across all channels.

Mini Size With Internal Fuse Built In
The enclosure of this mini TV signal amplifier is housed in a lightweight enclosure for superior corrosion protection and designed for indoor use.

It also have an internal fuse built in for extra safety and protection against power surge through the power line, very suitable for installation in apartments, hotels, dormitories, etc.

• Premium active type powered CATV amplifier with 14dB boost for all UHF, UHF, CATV, antenna TV setup.
• Indoor type RF signal amplifier for analog TV channels or FM antenna signals.
• Eliminate weak or spotty cable or antenna TV reception and restores signal integrity with minimal noise and maximum clarity.
• Provide low-noise amplification of RF signals for stable signal quality and optimal distribution across all TV channels.
• Extend the cable TV signal for another 750FT or 230m if RF TV source signals have fair 70 to 75dB strength to start with.
• Wide operation frequency range from 45 MHz to 1000MHz.
• Double as drop amplifier with active power supply.
• Super low noise figure of 1.5 dB with low distortion.
• Mini compact size with low power consumption.
• Internal fuse and transformer built in for extra safety and protection against power surge through the power line.
• Powered by DC 12V 1A power supply.

• Operation Frequency Range: 45-1000MHZ
• Output Level: ≦ 86 dBmV
• Power Gain: 14 dB +/- 1.5 dB
• Noise Figure: <= 1.5 dB
• Gain Flatness: +/- 1.5 dB
• Input Return Loss (45~860MHz): >= 8 dB
• Output Return Loss (45~860MHz): >= 8 dB
• Power Supply: 110 to 240V AC input with DC 12V 1A output, US 2-Prong plug
• Size: 4.5"(W) x 2.5"(D) x 1"(H)
