4-Channel Mini Quad View BNC Video Processor With IR Remote
Item# PIPV5050BNC
$62.00

Product Description

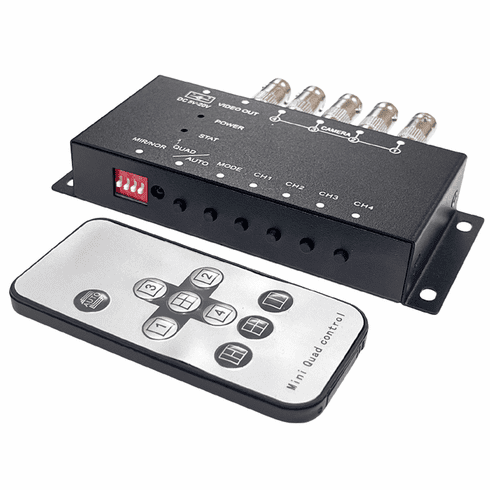

Mini 4-Channel Quad Picture-In-Picture Video Processor With IR Remote

4-Channel Mini Quad View Video Processor With IR Remote
This 4-channel mini video multiplexer combines 4 composite BNC/RCA video inputs together into different styles of split-screen views for one screen display.

All camera feeds or regular composite RCA or BNC video feeds can be output simultaneously onto one screen for viewing or monitoring.

This video multiplexer provides various split screen mode options such as the common quad screen, H-type quad screen and various split screen for viewing multiple video feeds or cameras at the same time.

This video converter switch can accept a mix of both NTSC and PAL video or camera inputs at the same time and still provide clear color picture screen.

This unit is also very suitable for car monitor use. It can use DC power from 5V to 12V for operation.

Built with metal enclosure in compact mini size at 4.2" (W) x 2.1" (D) x 1" (H) or 107mm(W) x 53mm(D)x 21mm(H).

Multiple Composite Video Inputs
Unit is built with 4 RCA video inputs with 1 RCA output. It also supports BNC video inputs and output too through using RCA to BNC plug adapters included in the package.

Easy Operation
Users can use the supplied IR remote or push buttons on the front panel for selecting video output mode, auto sequencing or video input channel.

Image Mirroring Support
This split-screen video processor provides users with a dip switch so users can select either normal image or mirror image if needed.

Real-Time Split Screen Modes
Each split screen mode is easily activated through using the push buttons on the front panel or the supplied IR remote controller.

All the multi-channel screen matrix modes will be displayed on the monitor in cycle until the desired matrix selected.

All video channels can be presented in the following 7 different modes:

  • 4-channel quad screen
  • 4-channel H-type split screen
  • 3-channel screen with overlay of 2 sub video channels
  • 2-channel screen in horizontal split
  • 2-channel screen in vertical split
  • 1-channel full screen
  • Auto sequential channel switching mode

In-Vehicle Monitoring
When working with 4 wide-angle car cameras, this video multi-viewer can provide 360-degree panoramic vehicle monitoring through its H-type split screen view, which is more in line with driving habit.

Automatic Sequence Switching Support
Sequence switching to cycle through all video inputs from various cameras or video devices can be done via pressing the "Auto" button on the IR remote or the front panel..

Auto channel sequence switching will display quad screen first and followed by each single channel full screen.

  • Combine all 4 or selected input video feeds into different styles of split-screen views on one display for preview, live monitoring or video recording.
  • Great tool for visual applications related with video monitoring, multimedia presentation, video editing, post production or video capturing systems.
  • Supports hookup with all CCTV security surveillance cameras with standard composite video output.
  • Easy and fast switching between video/audio inputs, split-screen modes by using IR remote control or push buttons on the front panel.
  • Supports total 7 screen modes including 4-channel split, 3-channel split, 2-channel split, 1-channel full-screen and auto sequence.
  • Also great for in-car installation for monitoring the surrounding traffic.
  • A dip switch for mirroring view so users can select either normal image or mirror image if needed.
  • Supports auto sequential channel switching function.
  • Supports mix of both NTSC and PAL video or camera inputs at the same time and still provide clear color picture screen.
  • Built with metal enclosure in compact mini size.
  • Support wide range of DC power from 5V to 12V for desktop or in-car operation.

  • Video Inputs: RCA/BNC x 4, 1.0Vp-p composite 75 ohms
  • Video Output: RCA/BNC x 1, 1.0Vp-p composite 75 ohms
  • Video Resolution: NTSC:720×480 pixels at 60Hz : PAL:720×576 pixels at 50Hz
  • Split-Screen Output Mode Support:
    • 4-channel quad screen
    • 4-channel H-type split screen
    • 3-channel screen with overlay of 2 sub video channels
    • 2-channel screen in horizontal split
    • 2-channel screen in vertical split
    • 1-channel full screen
    • Auto sequential channel switching mode
  • Operation Temperature: -30ēC ~ 60ēC (-22°F ~ 140°F)
  • Power Supply: DC 5V ~12V
  • Dimension: 4.2" (W) x 2.1" (D) x 1" (H) or 107mm(W) x 53mm(D)x 21mm(H)

  • Mini quad video mixer unit
  • Set of 5 RCA to BNC adapters
  • IR remote
  • AC/DC power adapter
  • User manual
