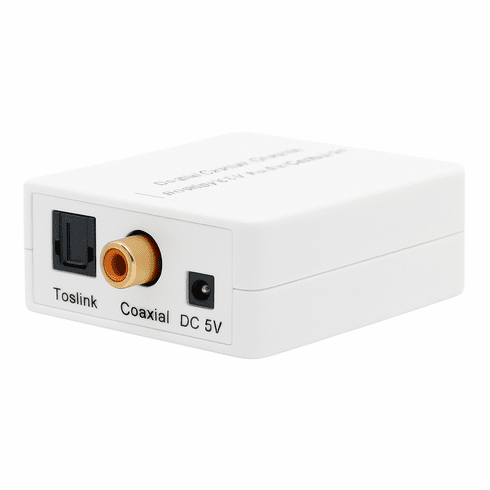

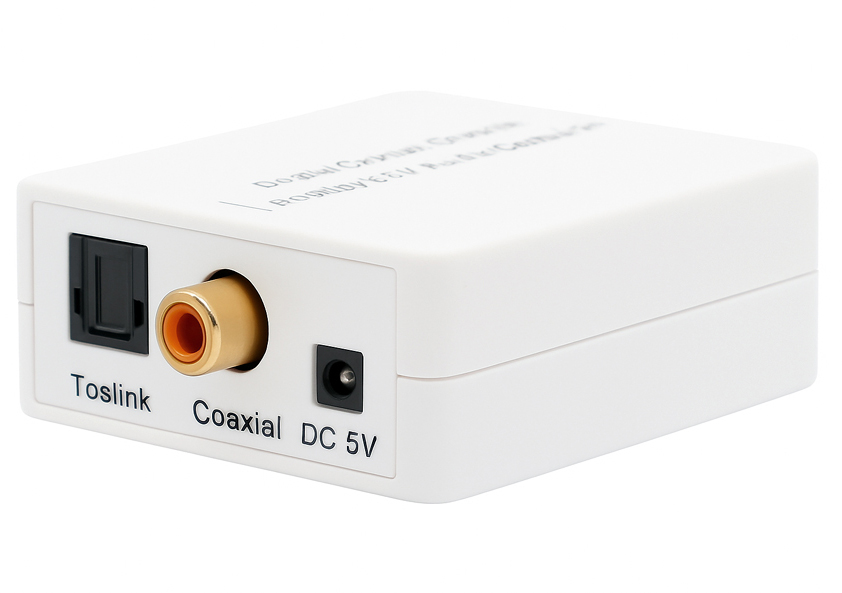

Digital Optical Coaxial S/PDIF To Stereo RCA Audio DAC Converter

Premium Digital Optical Coax S/PDIF To Analog Audio DAC Converter
This digital optical coax SPDIF to analog audio converter can decode the digital PCM audio signals (from Optical Toslink or Coaxial input) into analog stereo L/R RCA and 3.5mm AUX output.

Featured with high sampling rate at 24-bit 96kHz to deliver clean and clear audiophile sound quality.

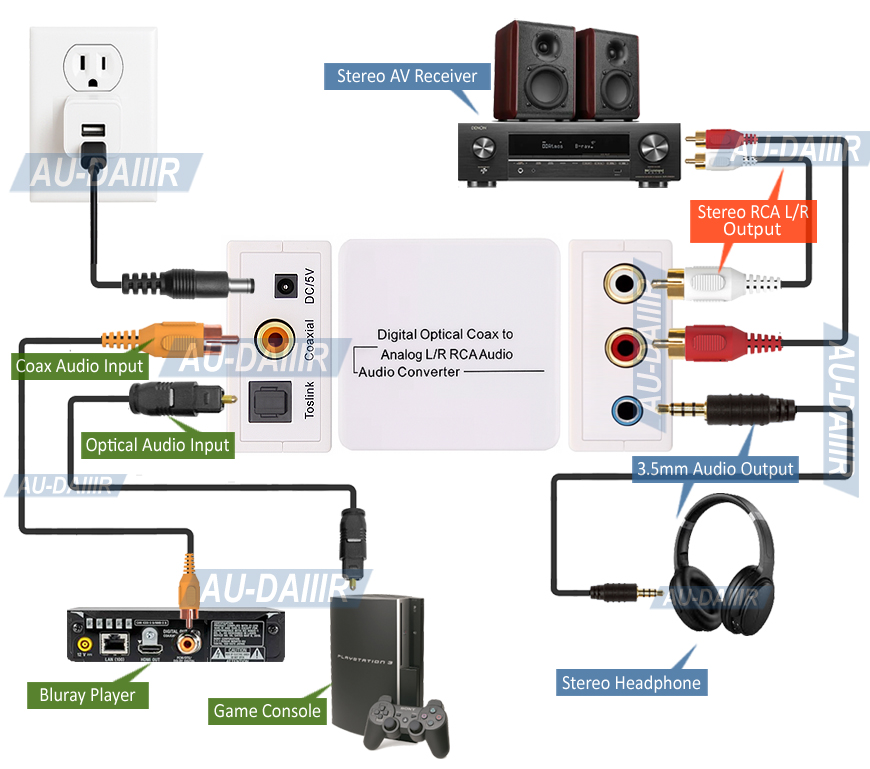

This DAC converter is ideal for connection with audio equipments such as AV receiver, computer sound card, mixer, audio switcher, stereo amplifier, Hi-Fi system or recording deck via the standard RCA connectors.

⚠[Note]: This PCM audio converter can not decode 5.1‑channel signals like Dolby Digital and DTS 5.1 audio. It will ONLY convert 2‑channel digital PCM type input signals to analog stereo output.

Universal Optical / Coaxial Digital Input
Compatible with TVs, DVD/Blu-ray players, game consoles, Apple TV, streaming boxes, and more.

Real-Time Audio Signal Conversion With Dual Analog Audio Output
This unit adopts the advanced audio encoding hardware chip to transcode the digital audio information with precision.

This digital audio conversion is done in real time with no lags with simultaneous RCA Left/Right and 3.5mm AUX output.

Both audio outputs are active at the same time, not switching needed.

Users can use the RCA L/R output for hookup with amplifier or speaker system while the 3.5mm output can be connected to headphone or external audio recording devices at the same time.

Advanced D To A Audio Decoding
This DAC processor is built with top-quality DAC. It helps the decoding result with noise-free fidelity sound and no distortion at all.

Its analog audio output maintains the original digital audio signal level all the way during the signal transmission with no degradation for maximum sonic fidelity.

High-Resolution Audio Processing
Supports 24-bit / 96 kHz sampling rate, delivering clean, detailed, and vibrant stereo sound for audiophile-level playback.

Perfect for TV-to-Speaker Integration
Works with TVs that only output digital audio — enables use of older analog stereo receivers, sound systems, or powered speakers.

Noise-Free Audio Transmission
Built-in digital filter and anti-jitter circuitry help minimize signal loss and noise interference.

• Premium DAC converter for decoding digital 2-channel PCM audio from Optical Toslink or Coaxial input into analog stereo L/R RCA and 3.5mm AUX output.
• This digital audio converter outputs analog stereo output in real time with no lags.
• Its analog audio output maintains the original digital audio signal level all the way during the signal transmission with no degradation for maximum sonic fidelity.
• Supports 24-bit / 96 kHz sampling rate and delivering clean, detailed, and vibrant stereo sound for audiophile-level playback.
• Supports simultaneous RCA Left/Right and 3.5mm AUX output.
• Both analog audio outputs are active at the same time, not switching needed.
• Built-in digital filter and anti-jitter circuitry help minimize signal loss and noise interference for noise-free transmission.
• Provides electromagnetic-noise-free transmission.
• Easy to install and simple to operate.

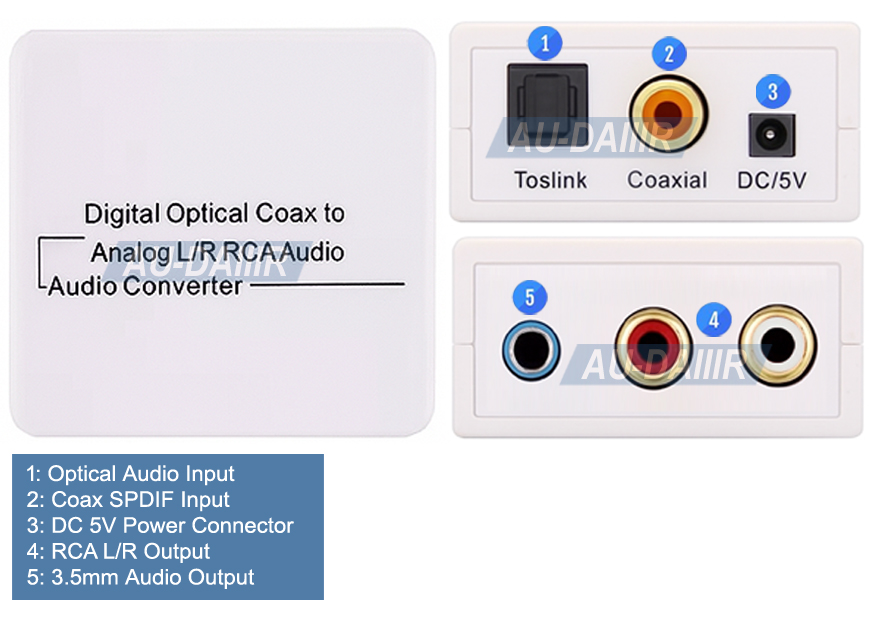

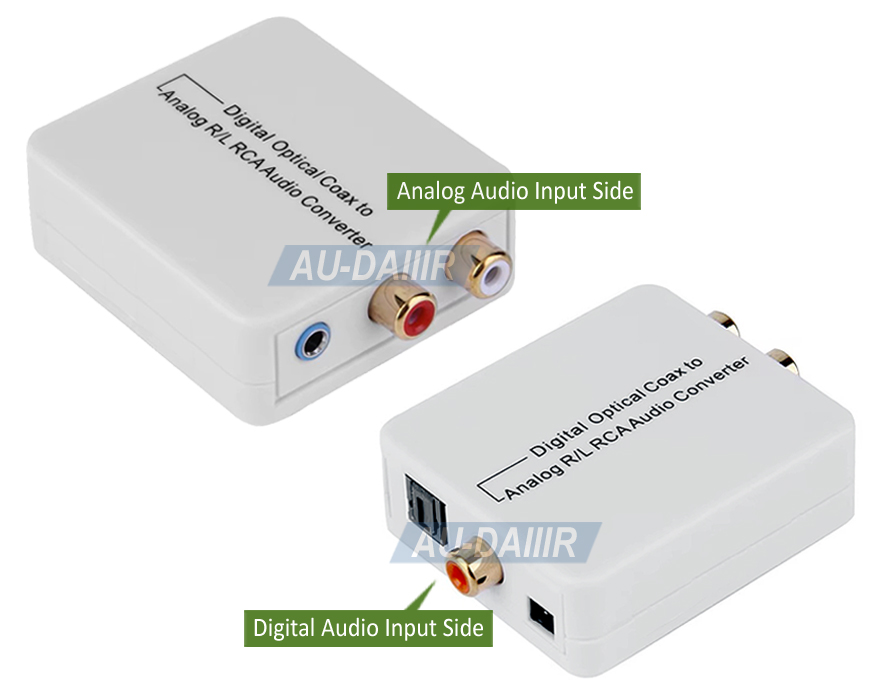

• Digital Input Audio Connectors:
  • Toslink input x 1
  • Coaxial S/PDIF input x 1
• Analog Output Audio Connectors:
  • RCA left and right channel output
  • 3.5mm headphone style output
• Sampling Rate: 96 KHz maximum.
• Power Supply: 5V DC @ 1A
• Power Consumption: 0.5 watts (max)

• Digital to analog audio converter
• 5V DC to USB power cord
• User manual
