Universal NTSC PAL SECAM TV Video System Converter

Users can watch PAL video from the pal DVD player or satellite receiver on a NTSC TV or capture PAL video into a NTSC video recorder or the reverse way.

Features full digital decoding and encoding. Ideal for converting VHS tapes or other analog video contents onto DVD or video tapes for collection.

This gadget is also well recommended for video game consoles too like PlayStation 2, PS3, Xbox 360 and Wii made for foreign systems. Enjoy watching or recording foreign videos on your local TV set anywhere in the world.

Worldwide Video Standards Conversion
This TV video system converter supports worldwide video standards including all NTSC, PAL (B/D/G/H/I/K), PAL-M, PAL-N and SECAM into selectable NTSC / PAL output with both color and field rate conversions.

Featured with automatic input video standards detection, all you have to do is to select the desired video output system for your TV display or video recorder.

Digital Decoding
Unlike other video standards converters, this unit supports field rate conversion of 50-60 Hz and also the scan line conversion of 525-625 lines between PAL and NTSC.

What's important about the field rate conversion ? Those cheaper analog models can only convert color information between NTSC and PAL and they do not convert field hertz rate and scan lines between NTSC and PAL so the outputs from those analog models are only good for viewing purpose and can not be used for recording.

If you need to record the converted PAL video into a NTSC video recorder or the other way around, this is the right digital model to take care all for you.

Automatic Gain Control
The built-in AGC circuit performs gain adjustments incrementally at a pre-determined rate by the input signal level to avoid any distortion of the output signal so to maintain the accurate output signal level as the original input.

This video system converter ensures the output video with standard broadcast level 1 Vp-p (input level ranges from 0.5 Vp-p to 2 Vp-p), which will be compatible with all video recorders and TV broadcast equipments.

Horizontal Position Adjustment

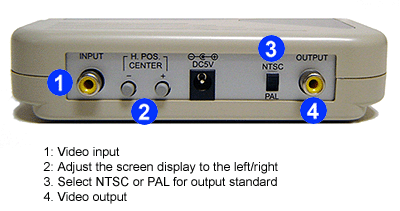

Manual adjustment for screen position is available. Users can push the H-Position button from the back panel of this video system converter to the left or the right of the TV screen if needed for best visual presentation.

• Supports inputs of worldwide video standards including NTSC, PAL B/D/G/H/I/K, PAL-M, PAL-N and SECAM signals.
• Automatic input video system detection.
• Ideal for converting videos produced from different countries onto DVD disc or video tape for media players or recorder of the local system.
• Very easy to operate.
• Supports digital scan line conversion from 525 to/from 625 scan lines.
• Converts refresh frequency between PAL 50Hz and NTSC 60Hz.
• 8M bit field memory for high-resolution picture quality.
• Selectable video output in NTSC or PAL format via dip switch for local TV viewing or video recorder.
• Automatic gain control for ensuring that the output signal has accurate and identical level as the original input signal without any sync distortion.
• Provides color bar pattern when there is no signal present.
• Works with most DVD players/recorders, video cameras, VCRs, satellite receivers, video monitors and television systems of all kinds.
• Compact size with sturdy enclosure.
