4-port Remote Power Switch 4 Outles - Web Control

4-port Remote Power Switch 4 Outles - Web Control
Item# IP-P1
This item is currently out of stock!

Product Description

<Discontinued Product>

Web Power Controller For Remote Power ManagementWeb Power Controller For Remote Power Management
This premium remote power switch/distribution system is designed to provide remote management of AC power distribution and AC power operation control for all powered equipments through local network or internet.

This device is an intelligent power controller with four power outlets. Anyone with a web browser can access this power switch to perform power On, Off or Reboot. Once network connection has been established and the security login approved, power at each of the four outlets is controlled with a simple click in the browser.

This compact PDU is standalone network appliance that requires no expensive master controller. Each outlet can be independently turned ON/OFF or cycled for power-on reset. Power can be controlled remotely via LAN/WAN or serial RS-232 connection.

Complete control over when and what sequence equipment is restored with a timed delay or scheduled on/off/shutdowns to conserve energy in the data center. Eliminate service calls and increase reliability. Eliminate problems with brownouts and blackouts. An absolute necessity to manage power supplies to servers, routers, network equipment and industrial machinery securely from your web browser.

Network Server Remote Reboot
Network equipments like routers or data servers sometimes "locks-up", requiring a service call just to flip the power switch to perform a simple reboot. This remote power switch can allow administrators to control reboot the power supply to the PC or server at remote site.

No longer need to waste human time to send someone to the site for a physical power reset or system re-boot. You can get it all done from your web browser through internet ! Save time and money by eliminating service calls and reducing downtime to a minimum.

Equipment Protection/Energy Savings
This remote power controller can help users protect sensitive devices or valuable equipment by keeping them powered off when not in use. This prevents hackers from detecting them at all times.

Very suitable for energy related or network application by powering down equipments when not needed for power savings and to save on wear and tear or powering up environmental system such as UPS, power generator, heaters, coolers, pumps, fans, lighting, signage, network routers/hubs/switches, DSL/Cable modems, ATM's, servers, firewalls and security surveillance system, etc. at scheduled time.

Intelligent Power Control with Timer/Scheduler

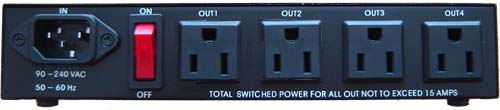

This power controller provides configurable timer/scheduler setup. The time scheduler function provided from the web control panel can help users arrange and perform pre-set power events on desired outlet based up the preset schedules. No complexity and no software skill required.Front And Back Panel Of IP-P1 Model

And these schedules can be reprogrammed at any stage (over the Internet or local Ethernet). Users can program the power operations to be performed at specific time of the day as needed. And the recurrent parameters supported in the timer function includes:

  • One-time only
  • Daily
  • Week days (for Monday through Friday)
  • Weekends (for Saturdays and Sundays only)

Easy Web Control And Configuration
This management of this power controller is all easy web administration for all configuration.  Its built-in Linux-based web server provides users with intuitive web control panel. Authorized users can access the control menu
by using a simple web browser from any local network or any remote location from internet. No special software required. Works with any form of web browser.

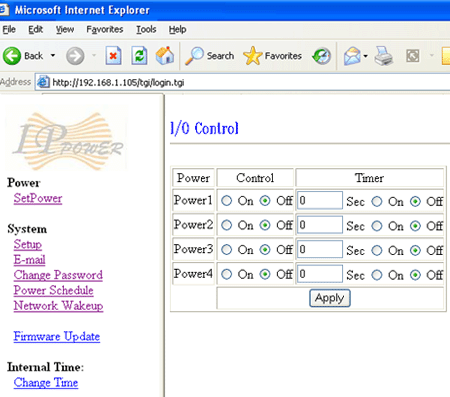

Its web control panel provides important power control functions such as remote power scheduling, remote power setting and remote power status report, which can all be accessed via internet or local network. Screen shots for major functions are provided blow for illustration purpose about how the unit is used and performed:

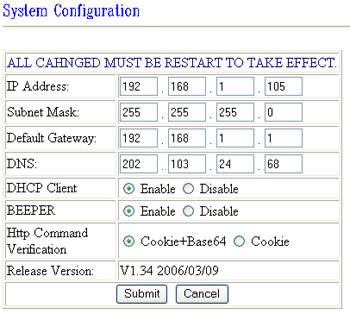

Power I/O Setup Network Setup DDNS Setup Power Scheduling

Security and Co-Location Features
This remote AC power switch/power strip is password protected for security. Address-specific IP security masks prevent unauthorized sources from accessing the control menu through the network. This power switch provides two levels of operational passwords; the system administrator level, which allows access to all configuration and switching functions, and the user level which only allows switching of assigned plugs. The user-level security features are ideal for co-location applications, where multiple users may be allowed plug-specific access to the power switch.

Safety Self-Protection
This intelligent power switch provides 2 different system shutdowns for safety measure:

  • Auto Shutdown By Current Overload
    This remote power switch has a circuit breaker built in for protection of devices connected to the power switch. This remote power switch will be automatically shut down for responding to a current overload or short circuit condition.

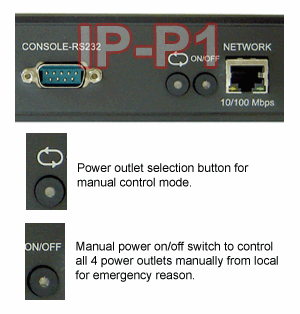

  • Manual Shutdown By Master On/Off Power Button
    A master power on/off button plus combination of push buttons on the front panel of switch box are provided for local operator to override the remote control mode and take control of this power switch in an emergency. No need to unplug the power cord or run to trip a breaker from the power panel.

  • IP-addressable power distribution unit with built-in web server with 4 AC power outlets.
  • A new way to control power supply of the remote equipments via internet without the presence of personnel.
  • Support power supply control via the local LAN or internet using web browser. No special software required to be installed on the PC for accessing the power controller unit.
  • Remote network server reboot. No field trips required for network reboot. Save time/money by eliminating service calls and reducing downtime to minimum.
  • Timer/Advanced scheduler for powering switch. This unit can pre-set the time schedule to turn power on/off thru Internet/Ethernet.
  • WAP Mobile Phone Control -- can use the GPRS cell phone via WAP to control.
  • Support NTP (Network Time Protocol) to synchronize the time of the power controller box to the internet current time
  • Supports manual power mode for local control of the power switch for all 4 outlets in case of emergency.
  • Supports daisy chain connection with other remote power switches or power outlet with using daughter device.
  • Power overload protection.
  • Factory Defaults: In the event that the password is forgotten, or IP address has been programmed to an invalid number, administrator can always reset the power switch back to its original factory defaults and/or set its IP address.
  • Set up individual power outlet default: When regaining power, the power box can restore each outlet to the default status settings.
  • Security access:  dual-password setup for access security to prevent unauthorized sources from accessing the control menu through the network.
  • Supports external controls via RS-232 serial port or http commands.
  • Supports Telnet protocols.
  • Designed for high voltage resistance and protection for leakage of electrical currency, using nonflammable materials.

  • Reboot- Remote power reboot of any device like:
    • Network Routers, Data Servers or Server Farm
    • Kiosks, Cell Sites
    • ATM Machines
    • HVAC
    • Generators
    • Alert Systems/Security Surveillance/DVR System
    • Lighting Equipments/Lamps
    • Industrial Machinery Equipments
  • Protection-  power connected power devices by keeping them powered off when not in use. This prevents hackers from seeing them at all times.
  • Saving Energy- Power down equipment when not needed for power savings and to save on wear and tear.
  • Security Notification- Power up alert devices like sirens, lamps, messages;
  • Intelligent Power Management- Power up environmental system like heaters, coolers, pumps, etc. with programmed schedules.

Network function:

  • Web server design with control through LAN/WAN network.
  • Supports HTTP, DDNS , SMTP, SNMP, INTERNET- fixed IP, DHCP, LAN - virtual IP
  • Support NTP (Network Time Protocol ) - synchronize the time of the power controller to the Internet web time .
  • Support HTTP and DHCP/IP protocol. Windows SDK available.
  • Supports DHCP and alternate ports for Web Access
  • Security password identification to ensure system stability.
  • Watchdog design to avoid network abnormal interruptions.
  • Timer and scheduler design to support power reboot by programming in advance.

  • 1 Male Inlet (power in) and 4 Female AC power outlets (Power output switch via Ethernet)
  • Input Power Voltage Range: 110V to 240V AC.
  • Max Current Load:
    • 15 Amp maximum total for 4 outlets in 110V setup
    • 10 Amp maximum total for 4 outlets in 240V setup
    •  6 Amp maximum per outlet for all setup
  • Response Time: 10 ms max.
  • Operating Temperature: 0 to 70 degree C.
  • Manual power On/Off with LED light indication.
  • LED power status indicator x 4
  • RJ-45 port x 1
  • RS-232 console port x 1

  • Remote power controller unit
  • Quick installation guide
  • Utility software CD
  • AC power cord
