Pro
Video to VGA RGB Converter Scaler + NTSC TV Tuner
Watch high-resolution
cable TV or sharp DVD pictures on any LCD TV monitor, Plasma TV, projector or
other VGA displays. The input video signals can
be scaled up to 1024x768 Pixels,
which matches the native resolution of most LCD projectors for optimal performance.
This unit supports total of 5 video inputs. That means you can have coaxial cable for CATV, Composite video, S-video, Component video (YCbCr) plus PC inputs for multiple device switching at a time. Operation and controls can be done by using the IR remote controller or by the manual push buttons on the unit.
Stand
Alone External NTSC TV Tuner
The RF coax input of this unit is
reserved for input of cable TV or external antenna for broadcast
TV via air. Featured with the advanced
Philips
TV tuner module built in, this video
processor delivers sharp and crystal clear TV video quality for all big screen
flat panel TV displays with composite RCA inputs or monitors with VGA
inputs.
This Philips TV tuner supports all NTSC cable TV channel frequencies ranged from 54 to 810 Mhz. Channel memorizing function allows user to program favorite TV channels into a list for ease of selection.
 |
 |

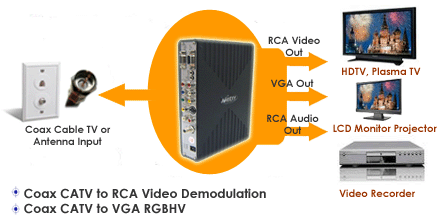

Excellent Coax CATV
To RCA Video Audio Demodulator
This unit can be used as a perfect
external TV tuner for those HDTV sets or monitors without analog cable TV tuner. Simply connect the coax cable from wall plug into this demodulator to
convert your cable TV signals into composite video and audio signals via RCA
connectors for hookup with other A/V equipments.
Great external TV tuner for all video monitors, TV displays and video recorders. Excellent add-on device for your VCR, DVD player if they do not have tuner inside.
The converted RCA video and audio signals from the coax CATV input can also be used for video recorders, media servers, A/V receivers, wireless transmitter or simply for 2nd TV display.

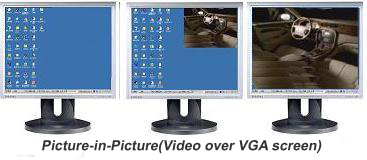

Picture-In-Picture Support
This unit allows users to
show TV programs or DVD
movie together with the computer screen if a PC is connected to this
unit. With this PIP feature, you can work on the computer
and keep an eye on your TV shows or DVD movie on the same screen so never miss a show or your favorite sports event
!
- PIP Zoom: This function allows PC image as the main screen with a video sub screen inserted. The video sub window can vary in 3 sizes from 1/4, 1/9 & 1/16 of the screen and able to be relocated to anywhere on the computer screen.
- PIP(Picture-in-Picture) Input: Select the desired input source to be displayed on the video sub-window on the computer screen.
- PIP audio: Allows users to select the audio channel for the video sub window from TV, c-video, s-video, component input.
Multi-Purposed
Video Switcher
Scaler
This unit supports
total of 5
different
video
inputs.
That means you can
have
coaxial cable for CATV, Composite video, S-video,
480i/576i component
video
plus
1 PC VGA 15-pin
input for multiple
device switching at a time.
The output resolution can be
scaled up in 4 levels ranging from 640x480 pixels, 800x600 pixels and up to 1024x768
pixels, great for LCD TV, Plasma TV,
Projection TV,HD monitor, LCD/TFT/CRT VGA monitors.
It accepts multiple video device inputs from:
- Antenna for broadcast TV
- Coaxial cable for CATV
- Desktop/Laptop PC/Mac or other VGA sources
- Digital cable box
- HD set top box
- Camcorder
- Video cameras/CCTV surveillance cameras
- VCR/DVD player
- Video game consoles
- PVR/DSR/DVR/Tivo
- Satellite receiver/DVB set up box
- All other video sources
Advanced
Progressive Scan Converter
With
the cutting edge Progressive Scan technology and 3D motion adoptive
de-interlacing, this unit helps
minimize jagged edges on angled lines, which is
typical problem occurred when watching standard definition TV
signals or analog videos on a big
screen display.
This video processor delivers great video clarity and sharpness so you can enjoy the sharp image and high-resolution digital display on your big screen HDTV set, LCD TV, home theater projector or computer monitor through the VGA or RGBHV connection.
The built-in video processor also implements advanced color space conversion with smooth motion picture enhancement to optimize the conversion process and outputs in progressive scan formats for flicker-free motion pictures.
 |
Advanced
Video Processor Engine
With image
enhancement technologies implemented, such as Color Transient Improvement (CTI)
for reduced color smear Luminance, and Level Transient Improvement (LTI) for
enhanced details, this converter produces greater detail for a more true-to-life
image.
- Digital level transient improvement (DLTI) to enhance image definition for crisp and clear images.
- Digital color luminance transient improvement (DCTI) to reduce color smear luminance for true and brilliant color definition.
- Special 3D motion adaptive de-interlacing to ensure jaggy-free picture.
- Advanced color space conversion with smooth motion picture enhancement.
- Adaptive non-linear video noise filter to reduce signal interference between pixels.
- Automatic scan rate conversion.
- Superior DVD video quality with 3:2/2:2 pull-down recovery. Movie mode reverse 3:2 pull down to remove Jitters by transferring 24 frames movie mode signal into 30 frames/sec for motion picture display.

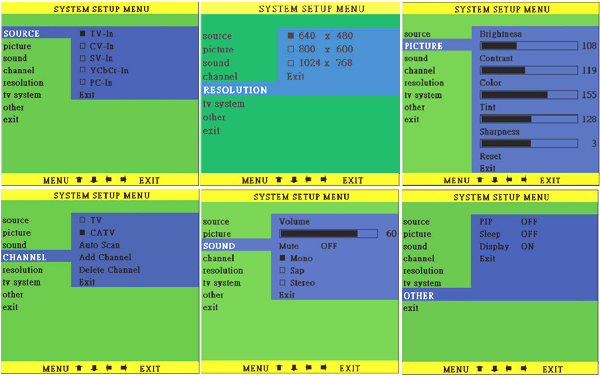

Easy OSD
System Setup

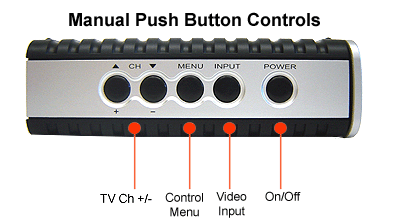

This unit supports manual operation via
push buttons in addition to remote controller. On-Screen setup menu includes:
-
Input source selection
-
Picture quality adjustment
-
Sound audio selection
-
TV channel programming
-
Output resolution selection
-
Other setups for PIP, sleep timer and on/off of the input/output information on the screen.
 |
MTS & SAP Stereo Audio Support
This multimedia unit
enhances your TV viewing with quality stereo sound. This
tuner module supports MTS/SAP (Multi-channel Television Sound/Separate Audio
Program) which receives full stereo television broadcasts, and bilingual
broadcasts including news and weather reports.
Users can press the button of the remote to select among Stereo, SAP or Mono audio mode from the video source. Audio output can also be routed to any Hi-Fi amplifier or powered speakers.
 |
|
|
|
 |
|
|
|
 |
