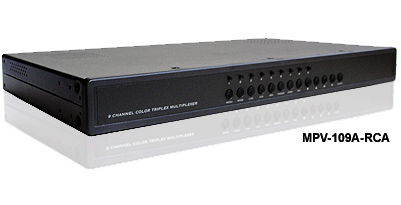

Professional 9-Channel Video Mixer PIP Video Processor
This multi-channel video mixer provides a cost effective solution of combining multiple video inputs together into a single split screen view for display or video recording. All video inputs are synchronized accurately so all cameras or video channels are displayed simultaneously in real time for smooth and sharp pictures without any glitch occurred.

This professional multi-screen video processor provides total of 13 options in 9/8/7/6/5/4-grid, standard quad screen and various Picture-In-Picture screen modes for viewing multiple video inputs on the same screen real time. It has more features and options than all other models on the market.

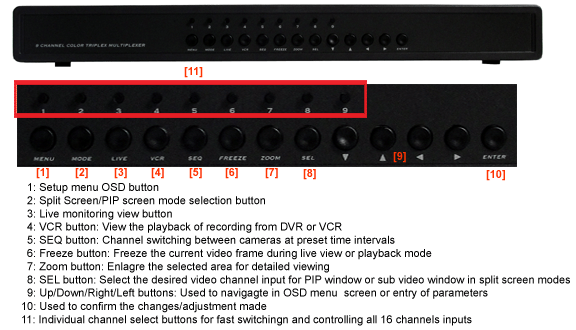

The push buttons on the front panel provide users with controls of video channel matrix styles, PIP channel locations and the assignment for main channels, sub channels and PIP channels. Its internal system memory will keep all users' current settings and selection so users do not have to re-configure the video processor again after reboot or power outage.

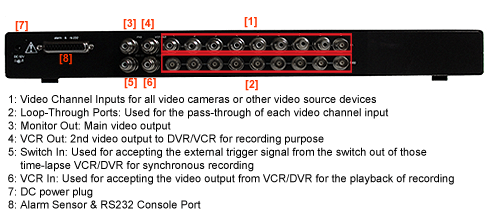

Featured with dual composite video outputs for displaying on two monitors, or one for a monitor with the other for a surveillance VCR. There is also a VCR input port which can be used with a surveillance VCR recorder to playback recorded video from the VCR. Users can easily switch between live viewing and playback of the recording from VCR/DVR connection.

This multiplexer also features video motion detection where it can detect movement within programmable motion detection area and selectable sensitivity levels for each video input.

Other useful features such as alarm history log, a VCR-trigger output and a RS232 port for distance control or alarm input/output. Setup and operation is quick and easy using the manual push buttons on the front panel plus the the on-screen OSD menu display.

This is a great video screen processor for DVR, video recording, multimedia entertainment or any other visual application requiring presentation of multiple video windows on single TV monitor for screen display.

Multi-Tasking with Duplex Operation
This multi-screen video overlay processor offers full duplex operation. Duplex operation is the ability for displaying and recording all of its video channels simultaneously on the same screen in real time. This video mixer has  advanced circuitry built in to ensure optimum picture quality through all different split-screen display modes.

This multi-tasking video processor also allows simultaneous performance of recording, playback and live viewing multi-screen all in one unit.

Multi-Channel Split Screen Display

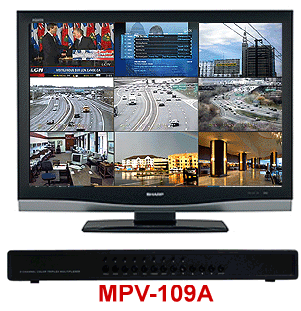

The multi-channel split screen video processor can be used as a stand-alone processor to control the layout and configuration of screen output to a single monitor for up to 16 security cameras or other analog video inputs. It can overlay all the selected input channels into different style of split-screen views for presentation. All video channels can be presented in the following 13 matrix screen modes:

Each screen mode is easily activated by pushing the "Mode" button on the front panel. All the multi-channel screen modes(9,8,7,6,5,4, PIP) will be displayed on the monitor in cycle until the desired matrix selected for multi-channel split screen, 2-channel PIP screen or single channel full screen display at any time with ease.

Fast Video Channel Selection
Once users choose their desired split-screen mode using the mode button on the front panel, they can also select or change effortlessly which video device input or camera input to be displayed as the main video window or PIP sub video window by pressing the "SEL"(select) button on this mixer.

This multi-channel video processor provides total of 9 individual video source buttons for all 9 inputs so users can swiftly switch between all video sources for full screen display. In addition, each video input is also looped through for individual pass to additional monitor display or recorder. Total of 9 video loop-through ports for all 9 video inputs.

Users can also easily change different video channel positions or adjust the location of sub video channels or PIP channel when in split-screen mode using these individual channel input buttons combined with the select button.

Automatic Video Channel Switching Support
Switching between cameras or video devices can be done manually or automatically with sequential dwell times of 1 to 99 seconds for each channel. Auto switching is available in single-channel full screen and multi-channel split screen modes.

Picture-In-Picture Video Processor

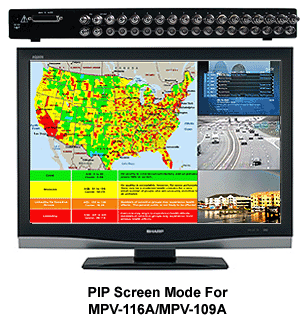

This unit can also be used as picture-in-picture generator for viewing 2 or more channels at the same time, one main channel with sub video channels in smaller video window on one screen. Great feature for users to watch DVD movie, cable channel or satellite TV while keeping an eye on the nanny cam or surveillance camera from smaller PIP channels on the same screen. Never miss a move or starting your favorite program.

Users can also swap between the main channel and the PIP channel with ease. The PIP video window positions will be fixated on either upper right or lower right corn of the screen and two PIP window sizes for choice.

Full Compatibility With All VCR/DVR Recording
This device provides dual video outputs and supports all types of video recorders. One is the main video output for live viewing and the 2nd video output is optional use for DVR/VCR recording purpose. A featured "Switch In" connector is available for accepting the external trigger signal from the switch out of those time-lapse VCR/DVR for synchronous recording.

This multi-channel video screen processor also provides a VCR/DVR input so users can instantly switch from live mode to review mode for seeing the playback of recording from DVR or VCR on the same monitoring screen.

Advanced Motion Detection
This video mixer system uses the advanced motion detection system for sensing movement on each video channel. Great feature for all video monitoring and CCTV surveillance applications. Motion detecting on all channels are individualized for display and recording.

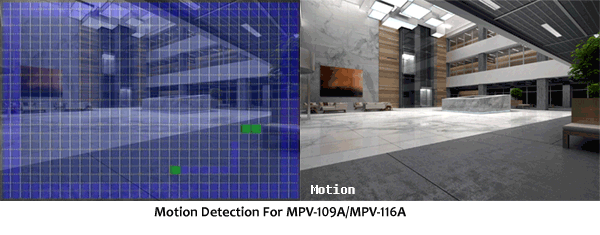

Motion detection function is available for all channels and configurable with 7-level sensitivity setup. Each camera video input channel has a programmable area with 30 x 24 detection grid (720 zones) on the screen so users can easily set up the areas needed for motion detection such as target placement, object size and shape, time of day, trigger sensitivity and alarm buzzer delay.

Other motion detection functions and features including:

Date/Time Stamp And Title/Character Generator
This video processor has title generator and date/time stamp generator built in for  superimposing titles, date and time on input video channels and video cameras. Users can edit the video channel title as needed. Each channel description/title can be up to 8 characters.

The date/time stamp and titling function is essential for showing information of date, current time, channel description/title on video channels for monitoring/viewing purpose and recording/capturing sessions. Ideal for use in video surveillance applications where establishing the date/time of recorded event is desired.

The date/time stamp can be turned off manually from the OSD system menu.

Last Memory
This multi-view video processor will memorize all the users' settings in the system buffer once configured or adjusted. The previous split screen or PIP/POP screen mode will be displayed right away in the same matrix style after power cycling or power outage.

No need to set up this video processor again for the desired screen mode again after the power off.

RS232 Console Control
The DB 25-pin connector of this unit can be used for connection with alarm sensors or other consoles for distance control.

Rack-Mount Ready
This unit is rack mount ready. The optional rack mount kit is available and sold separately for mounting this multi-channel video processor in a standard 19" rack.

Easy On-Screen Configuration
This unit is controlled through the front panel with user-friendly OSD menu for setup as the actual screenshots below illustrate:

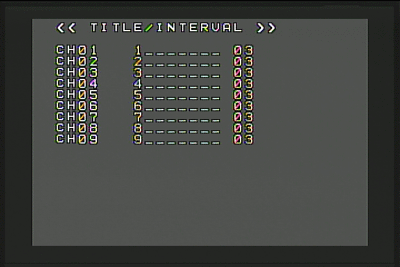

Main Setup Menu	Date/Time Stamp	Channel Title Generator

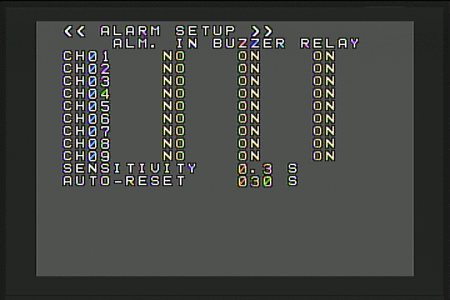

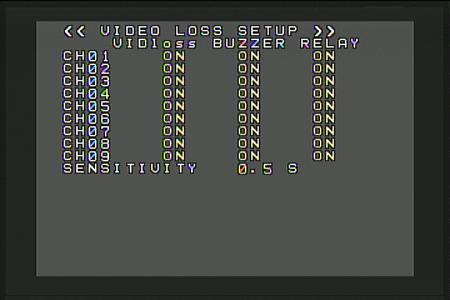

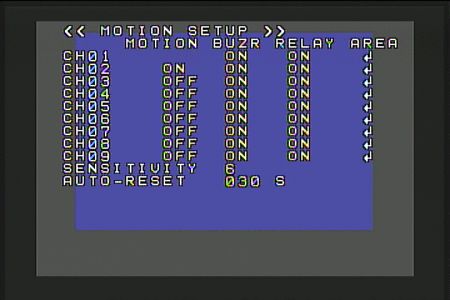

Alarm Setup	Video Loss Setup	Motion Detection Setup
Optional Setup	Event Record Setup	Channel Picture Adjustment

Alarm Support

• Video Loss Alarm: Automatically detect all video inputs after powering up. The built-in buzzer will sound off and the video channel title will start to flash alternatively when any video channel suddenly has loss of pictures detected. The video loss alarm can be turned off from OSD.
• Sensor Alarm: Supports external connection with alarm sensor inputs or used as an alarm contact to trigger other external alarm device.
• Video motion alarm: If the motion detection function is enabled from the setup menu, Motion detection for each individual camera is programmed via a detection grid. This unit will enter into an alarm status when a moving object is detected. The alarm channel indicator will illuminate and the buzzer will sound if selected. The alarm output is connected with an external alarm device, the device will be triggered.

• Professional 9-channel video mixer for real-time multi-channel display on one screen.
• 13 screen matrix styles for applications requiring one screen display showing all video feeds or recording all inputs in one channel.
• Full duplex operation for displaying and recording all of its video channels simultaneously in real time.
• Ideal for security monitoring or video preview application where multiple images are needed.
• Commanding necessity for multimedia entertainment, security surveillance and public broadcasting.
• Supports all NTSC video systems. (PAL version is also available upon special request)
• Super high resolution pictures with broadcast quality.
• Video channel matrix styles or PIP channel locations can be re-arranged with ease by the front panel.
• Each split-screen or PIP screen mode is easily activated through the front panel control.
• 9 composite video inputs with 9 individual source selection buttons for fast switching between all video channels.
• 9 video loop-through ports. Each video input can be looped out for connection with additional monitors/ recorders.
• 13 different video screen mode options in 9/8/7/6/5/4-grid, standard quad screen and Picture-In-Picture styles.
• Easy selection for main channel, sub/PIP channel via push buttons on the front panel for best suited visual presentation.
• Dual composite video output for live viewing and recording by VCR/DVR.
• Built-in time and date generator with an 8-character camera ID/Title generator.
• Flexible alarm input and output configurations.
• Programmable motion detection area and selectable sensitivity levels for each video input.
• Supports auto sequential channel switching function with adjustable dwelling time of 1 to 99 seconds.
• Supports automatic video loss detection, motion detection, external alarm detection with buzzer sound.
• Built-in alarm buzzer can be manually enabled for motion detection, video signal loss or external alarm setup.
• Supports all VCR/DVRs for perfectly synchronous recording.
• Supports image freeze control, enabling video frames to be paused or captured for extended period of time.
• Zoom function for detailed display when live viewing/ playback.
• Border line On/Off function for use in split screen matrix modes.
• Individual color adjustment provided for each video input channel for brightness, contrast, hue, saturation and sharpness control.
• Easy on-screen OSD setup menu for configuration and operation.
• Non-volatile system memory saves all user settings and protects them against power outages.
• The optional rack mount kit is available for mounting this multi-channel video processor in a standard 19" rack.
• Security lock feature so all push buttons on the front panel will be locked out to prevent inadvertent touches.
• Easy integration with other A/V system designs, CCTV security surveillance system, learning system and other video broadcast applications.

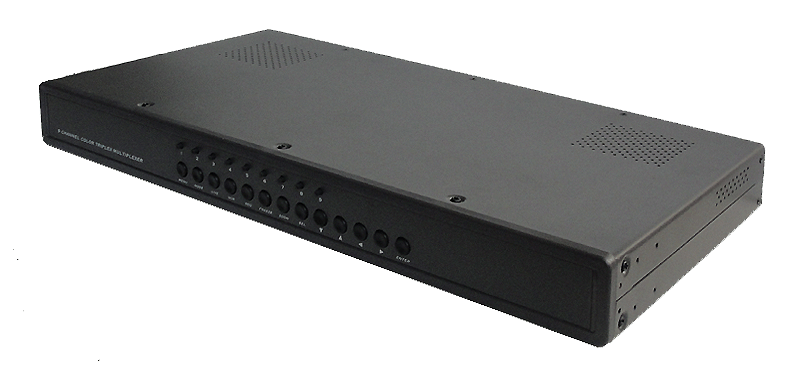

• MPV-109A video processor x 1
• Power adapter x 1
• Operation manual
• BNC to RCA adapter x 13

[Note]:

1). For optional rack mount kit, please click here
2). PAL version of this product with 230V power supply is available upon email request.
