4-Channel TVI CVI AHD CVSB RCA BNC Video to HDMI VGA Converter Switcher

4-Channel TVI CVI AHD CVSB RCA BNC Video to HDMI VGA Converter Switcher
This PIPV4001 model is a HD camera multiplexer that can support both HD surveillance cameras (HD-TVI, AHD, HD-CVI types) and analog BNC/RCA type video feeds or cameras.

This unit combines all the camera or DVR video input signals and outputs to one screen via HDMI, VGA and 2 BNC/RCA video outputs at the same time.

Its HDMI output and VGA output resolutions are selectable from 1024x768 pixels to 1080p.

Each BNC input of this quad video processor can accept either HD-TVI, AHD, HD-CVI type HD input or analog BNC/RCA composite video from camera or DVR.

This quad video converter switcher can also be used as a 4 In 1 Out HD-TVI HD-CVI AHD to HDMI VGA converter switcher.

This video multiplexer provides users with various split-screen options such as common quad screen mode and various PIP screen modes for viewing additional video feeds on the main screen.

Easy Setup
This split-screen processor itself is a stand alone unit and fully plug and play. No complicated configuration and very easy to be set up by users of all levels.

Once cabling hookup all done, the configuration and operation will be controlled through the supplied IR remote or push buttons on the front panel.

This HD/SD video multiplexer can accept mix of HD-CVI (720p or 1080p), HD-TVI (720p or 1080p), AHD (720p or 1080p) cameras and analog composite BNC/RCA video inputs at the same time.

Simultaneous HDMI VGA BNC RCA Video Outputs
This HD camera video processor provides simultaneous HDMI output, VGA output and 2 BNC/RCA analog video outputs.

HDMI and VGA output resolution will be the same and selectable as follows:

• HDMI/DVI Output: 720p/50Hz, 720p/60Hz,1 080p/50Hz, 1080p/60Hz, 1280x720 pixels or 1980x1080 pixels.
• VGA Output: 1024x768, 1280x1024, 1440x900 pixels

Both BNC/RCA video outputs always fixed at 720×480 pixels for NTSC output or PAL output at 720×576 pixels.

4 In 1 Out HD TVI CVI AHD BNC RCA Video To HDMI VGA Converter Switch
This quad video processor can double as a 4 In 1 Out HD-TVI, HD-CVI, AHD, BNC/RCA video to HDMI + VGA converter switcher with selectable HDMI and VGA output resolution.

Each BNC input can accept HD-TVI, AHD, HD-CVI or analog BNC/RCA video from camera or DVR.

The supported HDMI output resolution including 720p/50Hz, 720p/60Hz, 1080p/50Hz, 1080p/60Hz, 1280x720 pixels or 1980x1080 pixels.

The supported VGA output resolution including at 1024x768, 1280x1024, 1280x720, 1440x900 and 1920x1080 pixels.

Real-Time Split Screen Modes
Each split screen mode is easily activated through using the push buttons on the front panel or the supplied IR remote controller.

All video channels can be presented in the following 8 different modes:

• 4-channel quad screen
• 4-channel split screen with overlay of 3 sub video channels onto the main channel screen
• 3-channel split mode
• 2-channel split mode in horizontal split fashion
• 2-channel split mode in vertical split fashion
• 2-channel PIP screen mode with overlay of 1 video channel onto the main channel screen
• Single channel full screen
• Auto sequential channel switching mode (single camera channel scrolling with dwell time)

Automatic Sequence Switching Support
Auto channel sequence switching will display quad screen first and followed by each single channel full screen.

Sequence switching to cycle through all video inputs can be done manually or by programming sequential hold times of 1 to 99 seconds for each video input channel.

Easy On-Screen Configuration
This unit can be controlled through the push buttons on the front panel or the supplied remote controller. With user-friendly OSD setup menu provided for settings related with the following fields as the actual screenshots below illustrates:

• Input Setting
• Video Input Setting
• Video Output/Display Setting
• Picture-On-Picture Setting
• Auto Sequence Setting
• System Reset

On-Screen System Main Menu + Video Input Setting Screen

Video Output/Display Setting + Image Display Setting

Picture-On-Picture Setting + Auto Sequence Setting

Universal Video System Support
This video converter switch supports NTSC and PAL video format cameras.

It will automatic detect the input video system for NTSC and PAL with selectable NTSC or PAL output for display.
[Note]: NTSC and PAL camera video inputs cannot be mixed together for the setup.

• Supreme 4-channel HD/SD video mixer solution designed for multiple camera or DVR video feeds to be displayed on one screen.
• Each one of the 4 BNC inputs can accept either HD-TVI, AHD, HD-CVI type HD input or analog BNC/RCA composite video from camera or DVR.
• Provides simultaneous HDMI output, VGA output and 2 BNC/RCA analog video outputs.
• Doubles as a 4 in 1 out HD-TVI HD-CVI AHD BNC RCA to HDMI VGA converter switcher.
• Able to accept mix of HD-TVI, HD-CVI, AHD and analog BNC/RCA video inputs from camera, DVR and other compatible inputs at the same time.
• Combine all or selected input video feeds into different styles of split-screen views on one display for preview, live monitoring or video recording.
• Selectable HDMI video outputs at 720p/50Hz, 720p/60Hz, 1080p/50Hz, 1080p/60Hz, 1280x720 pixels and 1980x1080 pixels.
• Selectable VGA video outputs at 1024x768, 1280x1024 and 1440x900 pixels.
• Easy IR remote control and individual manual push buttons for easy and fast switching between video inputs.
• Supports total 8 screen modes including:
  • 4-channel quad screen mode
  • 4-channel split screen with overlay of 3 sub video channels onto the main channel screen
  • 3-channel split screen mode
  • 2-channel screen in horizontal split fashion
  • 2-channel screen in vertical split fashion
  • 2-channel PIP screen mode with overlay of 1 video channel onto the main channel screen
  • Single channel full screen
  • Auto sequential channel switching mode (single camera channel scrolling with dwell time)
• Supports image freeze control, enabling video frames to be paused or captured for extended period of time.
• Provides zoom function from quad to full screen picture.
• Supports auto sequential channel switching function with adjustable dwelling time of 1 to 99 seconds.
• Supports programmable motion detection area and sensitivity levels for each camera/input.
• Individual color adjustment provided for each video input channel for brightness, contrast, hue, saturation and sharpness control.
• Easy operation by IR remote control or on-screen setup through front panel push buttons.
• Supports all NTSC and PAL input and output systems.

• HD/SD Video Inputs: 4 x BNC channels 1.0Vp-p composite 75 ohms
• HD Camera Input Format Support:
  • HD-TVI type up to 1080p at 50/60Hz
  • HD-CVI type up to 1080p at 50/60Hz
  • AHD type up to 1080p at 50/60Hz
• HD/SD Video Outputs:
  • HDMI output x 1
  • D-sub 15-pin VGA out x 1
  • BNC/RCA out x2 (Monitor Out + VCR Out), 1.0Vp-p composite 75 ohms
• Video Output Resolution:
  • HDMI/DVI Output: 720p/50Hz, 720p/60Hz,1 080p/50Hz, 1080p/60Hz, 1280x720 pixels or 1980x1080 pixels
  • VGA Output: 1024x768, 1280x1024, 1280x720, 1440x900 and 1920x1080 pixels.
  • BNC/RCA Outputs: NTSC output at 720×480 pixels or PAL output at 720×576 pixels
• Split-Screen Output Mode Support:
  • 4-channel quad screen mode
  • 4-channel split screen with overlay of 3 sub video channels onto the main channel screen
  • 3-channel split screen mode
  • 2-channel screen in horizontal split fashion
  • 2-channel screen in vertical split fashion
  • 2-channel PIP screen mode with overlay of 1 video channel onto the main channel screen
  • Single channel full screen
  • Auto sequential channel switching mode (single camera channel scrolling with dwell time)
• Operation Temperature: 0ºC ~ 40ºC
• Power Supply: AC Input: 100-240V 50/60Hz AC input with DC 12V 1A output
• Dimension: 9.2"(W) x 6.8"(D) x 1.8" (H)

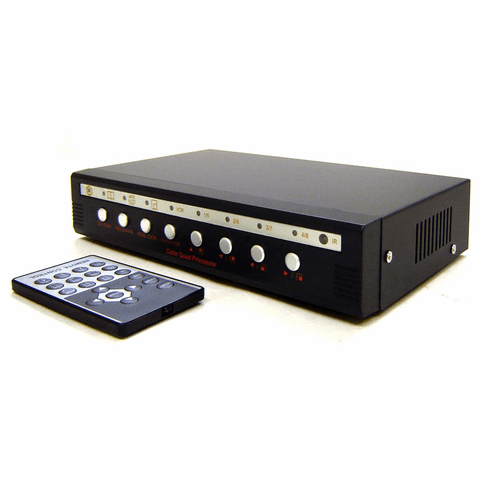

• HD quad video processor x 1
• IR remote controller
• AC/DC power adapter
• User manual
