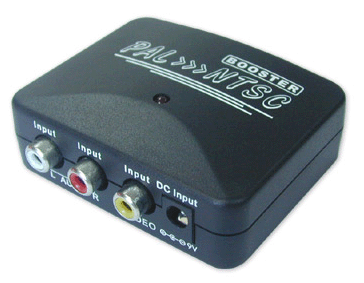

Converts the color frequency from PAL to NTSC. Perfect for connecting European media players such as VCRs, DVD players, satellite receiver, video game consoles, video camera or camcorders to a NTSC TV.
By

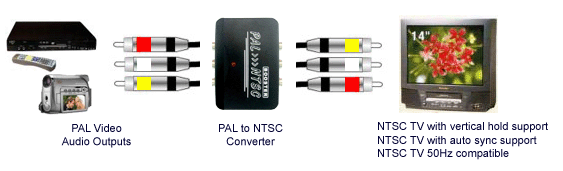

connecting this PAL to NTSC video standard converter between a VCR, a PAL satellite receiver
or a PAL camcorder and your local NTSC TV set, you can watch PAL video playing
on the local NTSC TV system.
This device converts the color frequency from PAL B,D,I,G, and H system to NTSC for video playback and watching foreign standard video
signals on a NTSC TV set.
This video standards converter model does not support vertical frequency conversion between PAL/50 and NTSC/60 Hz so the output from this converter remains at 50Hz in NTSC format, which will be only suitable for those NTSC 50Hz compatible TV, TV with auto sync or vertical hold support and this NTSC 50hz can not be used for recording purpose.
To adjust from 50Hz PAL to 60Hz NTSC for vertical sync adjustment, you will need our universal model: BV4-1, which can work on any type of TV and can be used for recording purpose too.
Test before you order this converter: To
find out if this converter is
suitable for your video system setup, first connect your PAL equipment directly to
your NTSC TV using composite A/V cable for connections. If you can get a stable image
in black
& white then this converter is suitable for your TV because this unit will convert
your PAL input to clear stable color image for the NTSC output.
|
- Supports PAL B/D/I/G/H inputs.
- Convert PAL to NTSC for color space conversion.
- Automatic brightness and color enhancement.

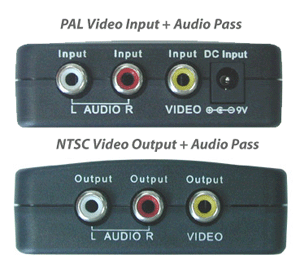

- Composite RCA video for both input and output.
- Supports audio pass-through.
- Best performance for conversion quality.
- 100V-240V power supply included (with US type plug)
- Video Input: 1 Vpp 75 Ohms RCA jack
- Video Output: 1 Vpp 75 Ohms RCA jack
- Audio Input/ output: RCA jacks thru unit
