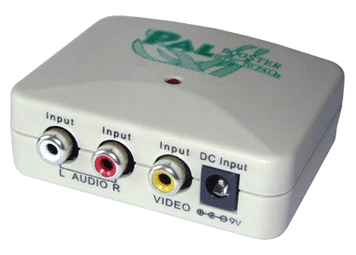

Converts the color frequency from NTSC to PAL. Perfect for connecting USA and other NTSC-region media players such as VCRs, DVD players, satellite receiver, video game consoles, video camera or camcorders to a European PAL TV.
By

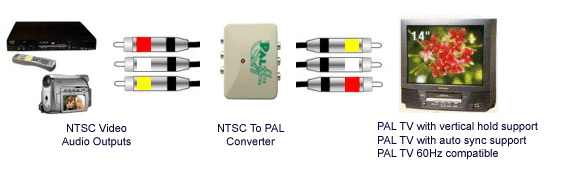

connecting this NTSC To PAL video standard converter between a VCR, a
NTSC satellite receiver
or a PAL camcorder and your local PAL TV set, you can watch NTSC video playing
on the local PAL TV system.
This device converts the color frequency from any NTSC 3.58/4.43 standard into
European PAL B,D,I,G, and H system for video playback and watching USA and other
foreign NTSC standard video
signals on a PAL TV set.
This video standards converter model does not support vertical frequency conversion between NTSC/60 Hz and PAL/50 so the output from this converter remains at 60Hz in PAL format, which will be only suitable for those PAL 60Hz compatible TV, TV with auto sync or vertical hold support and this PAL 60Hz can not be used for recording purpose.
To adjust from 60Hz NTSC to 50Hz PAL for vertical sync adjustment, you will need our universal model: BV4-1, which can work on any type of TV and can be used for recording purpose too.
Test before you order this converter: To
find out if this converter is
suitable for your video system setup, first connect your NTSC equipment directly to
your PAL TV using composite A/V cable for connections. If you can get a stable image
in black
& white then this converter is suitable for your TV because this unit will convert
your NTSC input to clear stable color image for the PAL output.
|
- Supports all NTSC 3.58 and NTSC 4.43 inputs.
- Convert NTSC to PAL B,D,I,G, and H system for color space conversion.
- Automatic brightness and color enhancement.

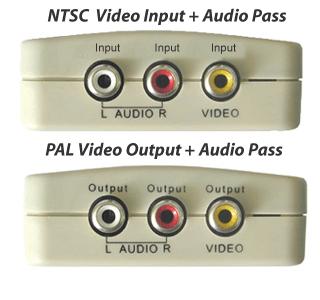

- Composite RCA video for both input and output.
- Supports audio pass-through.
- Best performance for conversion quality.
- 100V-240V power supply included (with US type plug)
- Video Input: 1 Vpp 75 Ohms RCA jack
- Video Output: 1 Vpp 75 Ohms RCA jack
- Audio Input/ output: RCA jacks thru unit
