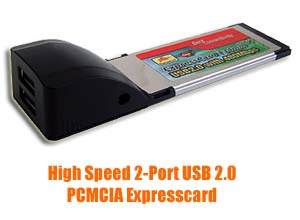

High Speed 2-Port USB 2.0 PCMCIA 34-Pin ExpressCard

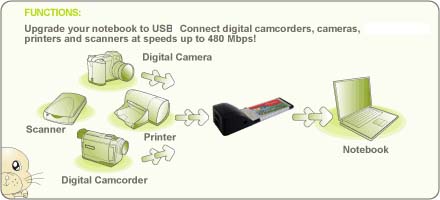

With this card added into your new laptop PCs, you instantly expand your laptop with two USB 2.0 ports, which provides better performance on the speed connection and data transfer for printer, scanner, PC camera, storage, and Broadband network connections. Allows you to take full advantage of the USB 2.0 technology on your current systems.

This express card can also automatically switches to the highest speed if supported by the peripherals connected ! Users can take advantage of the scalability that USB 2.0 products provide.

New ExpressCard 34mm Standard
ExpressCard technology draws upon many of the features of existing PC Card technology. There are also significant differences between the two.

• New Smaller Size: ExpressCard modules are roughly half the size and lighter.
• New Faster Speed: ExpressCard modules are capable of speeds up to 2.5X faster than CardBus and 40X faster than 16-bit I/O PC Cards (depending on the application).
• New Design: ExpressCard standard takes advantage of latest technology advancements to simplify the design and eliminate the need for a controller.
• Ease Of Use: The modules are hot-swappable between mobile and desktop systems.
• Less Power Required: ExpressCard modules require less power.

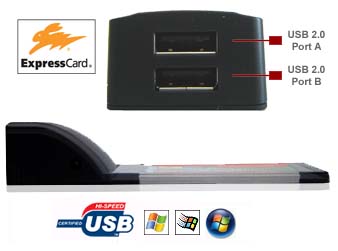

Expand Or Replace USB Ports From Your Laptop PC
USB ports ports on laptop PC these days are fragile and limited due to the smaller form factor of the newer laptop computer adopted. And they are very easy to be broken due to the mobile way of operation or quality design of the manufacturer.

Use this USB 2.0 PCMCIA Expresscard combo adapter card to instantly expand your laptop PC with more high speed USB 2.0 ports or replace your existing USB 2.0 ports ports if they are bad.

No Driver Installation Needed
Install this adapter card to your laptop in 10 seconds ! Windows will automatically find all the drivers needed and install for users automatically. Never worry about losing driver cd disc.

Hot Swappable
Hot swap support for all the USB peripherals. Full support of real time dynamic insertion and removal of devices. Users may disconnect and reconnect any USB devices without restarting the computer.

Supports All Windows OS
This adapter card can be used in Windows 2000, XP, XP 64bit, Sever 2003, Vista.

• Compliant with ExpressCard/34mm Type II standard.
• Compatible to 1-Lane(x1) PCI-Express with transfer rate 2.5Gbps throughout.
• Supports device hot swap and wake-up
• Dual hi-speed USB 2.0 ports.
• Supports High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps).
• Fully backwards compatible with USB 1.1 devices.
• Auto detect speeds and connections of USB devices.
• Guarantees full 5V/500mA Bus Power to be shared by any USB devices.
• Full bus power for operations with high-powered USB devices such as USB storage, scanners, CD-RW drives, hard drives, Zip drives.
• Current Protection Active lf Bus Power Over 500mA.
• USB connection support for up to 128 devices in peer-to-peer connection.
• No additional dongle or cables needed.  Compact design, perfect for the mobile professionals.

• USB 2.0 Type A connector x 1.
• USB 2.0 specification compliant.
• Open Host Controller Interface specification for USB Rev 1.0a compliant.
• Enhanced Host Controller Interface specification for USB Rev. 0.95 compliant.
• Hi speed data transfer rate: High speed at 480Mbps, Full speed at 12Mbps & Low speed at 1.5Mbps.
• External 5V DC jack for high current consumption devices.

• USB 2.0 PCMCIA Express combo card
• Installation sheet
