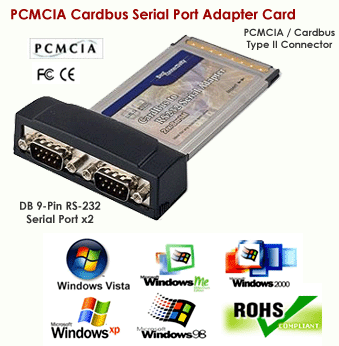

High-Speed Serial Port RS232 PCMCIA
Cardbus Adapter Card
Serial port connection is still an ideal input interconnect with many external devices. However many new laptop computers these days do not come with any serial port any more. What to do with this dilemma for many new mobile computers ?
This new parallel port PCMCIA adapter card is the best choice in these situations when a high speed serial port interface is required. This new high-speed PCMCIA to Serial Port adapter card is an ideal solution for adding a native serial port to a wide variety of laptop/notebook PC systems. It can function exactly like a standard COM port and can be configured differently as such by most serial application software.
Easy Expansion For
Laptop/Notebook PC With No Serial Port
Use this RS232 serial port cardbus
card to easily extend your laptop PC with a new serial com port if it does not
have one built in or used to replace a bad serial port on your notebook PC.
Provides Real
Communication Port For All Legacy Devices
This adapter is the most cost-effective way for users to connect
legacy serial port devices to their laptop PC. Unlike USB to serial port
adapters, this PC adapter card functions exactly like a computer's native serial
port and provides a true RS-232 serial port in order for your laptop PC to work
properly with devices that require a RS232 port for setup and configuration.
For many legacy devices like modem, barcode scanner or other older serial-port devices, they only work with a real COM port from a computer and in many cases can not work with virtual ports provided from those USB to serial port adapter cables to simulate the serial port connection.
After successfully installing this adapter card to your laptop PC, it will be listed in the Device Manger as a standard serial COM2, COM3, COM4 or other port and this new port setting can also be re-configured just like a native serial port to have selectable and shareable interrupt, further extending a portable or handheld system's limited resources.
Supports
All Legacy Hardware Requiring RS-232 Connection
The PC card is designed
to provide maximum performance and fully supports the industrial standard 16C550
UART protocol for all legacy devices that require RS-232 connection. Very suitable
for connection with applications
such as:
- Industrial machinery control and monitoring equipments.
- Telecommunication devices like dial-up modem pools, ATM's, cellular phones.
- Medical testing and other laboratory instruments.
- Transportation system like serial printers/plotters.
- Entertainment systems like satellite receiver.
- Retail system like Point-Of-Sale systems and barcode scanners.
- GPS tracking devices.
- Mobile data collection equipments for field operation.
- Computer terminal
- Older GSM phones
- Satellite phones, low-speed satellite modems and other satellite based transceiver devices
- Micro controller programmers
- LED and LCD text displays
- Test and measuring equipment such as digital millimeters and weighing systems
- Updating firmware on various consumer devices.
 |
 |
- Dual RS232 serial ports
- Fast performance UART chipset built in.
- Fits any Type II 32-bit 68-pin PCMCIA cardbus slot for older laptop PCs.
- Designed to provide maximum performance and fully supports the industrial standard 16C550 UART protocol
- Supports 16 byte TX and RX FIFOs for high speed and reliable communications.
- 128 byte transmit and receive FIFO to reduce CPU overhead.
- Supports connection with all legacy serial port RS-232 devices.
- High speed data transfer rate up to 1Mbps.
- Automated hardware flow control available.
- Supports manual configuration of the new com port settings just like a native serial port.
- Low power requirements.
- Supports Windows 2000/Server 2003, XP, Vista OS.
- Dual RS232 serial port x 2
- MCS9835 chipset
- 68-pin PCMCIA (type II) connector for notebook computers.
- Supports 32-bit Cardbus PC Card Type II standard
- Hot swap and fully plug-and-play operation
- Compatible with industrial standard 16C550 UART protocols
- Automated hardware / software flow control.
- Supports serial data transfer rate of up to 1Mbps
- Supports 5-, 6-. 8-bit data framing
- Supports 1 or 2 Stop bit operation
- 16-byte receive and transmit FIFO to reduce CPU overhead
