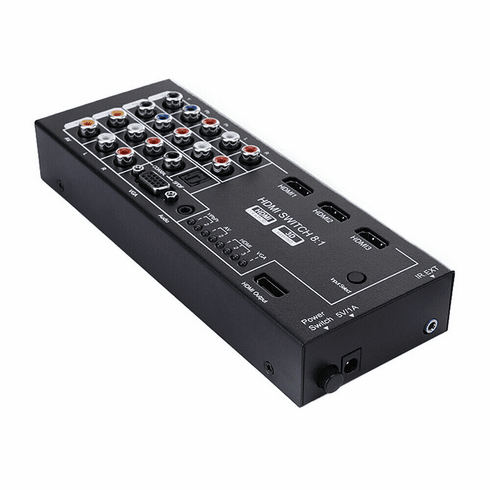

8-In-1 HDMI VGA Component YPbPr Composite RCA A/V To 1080p HDMI Converter Switcher With IR Remote
Multi-Format All To 1080p HDMI Converter Switcher With IR Remote
This multi-input multi-format HDMI converter switcher combines functions of video format converter and video/audio routing switch into one.
It is an advanced HDMI video converter switcher with 2 composite RCA A/V, 2 Component YPbPr, 1 VGA and 3 HDMI Inputs.
Designed to streamline users' existing A/V setup without constantly swapping audio video cables.
Users can easily manage their analog and digital video equipments and output to HDMI TV or monitor through single HDMI cable link and enjoy the sensational quality.
Easy switching all the connected video sources effortlessly through IR remote or the front push buttons for manual and distant operation.
Any composite RCA video, component YPbPr video, VGA or HDMI video feeds will be up converted to 1080p at 50Hz by this device for large screen presentation.
8 In 1 Out HDMI Video
This HDMI video switcher provides users with the most comprehensive analog/digital video audio inputs including:
- 3 HDMI inputs
- 2 component YPbPr video audio inputs
- 1 VGA input with 3.5mm audio input
- 2 composite RCA video audio inputs
Advanced Analog To Digital
Video Format Conversion
This all-in-1 HDMI video converter has advanced analog-to-digital converter function.
All digital/analog video inputs are format converted and pixel re-scaled to deliver the highest quality and crisp HD video.
This all-in-1 converter can handle the following:
- converting all HDMI videos to 1080p HDMI at 50Hz
- converting composite RCA video audio to 1080p HDMI
- converting component YPbPr video audio to 1080p HDMI
- converting VGA video audio to HDMI
Dual Digital Audio Outputs
This all to HDMI converter switcher also provide simultaneous digital audio outputs in coax S/PDIF and optical audio output for hookup with audio receiver or speakers for better sonic performance if needed.
The RCA L/R audio coming from the composite video, component video or PC audio or the digital audio from the HDMI input source will be encoded into HDMI and also routed through its optical/coax output at the same time.
Streamline Your Home AV Setup
Users can have all of their analog and digital video equipments connected together with one HDMI cable link with TV or projector.
No more cable mess scatting behind the TV or around the corner of the living room.
Fast Input Switching With Individual Source Buttons
Users can control the video input selection through using the supplied IR remote or front push button.
Its IR remote controller has 8 individual video input channel buttons so users can change video inputs from one to another directly.
The selected video input channel will be illuminated via the LED indicator on the unit.
10-Bit AD Conversion With Noise
Advanced 10-bit video processor built in for sharp digital images with vivid color depth during A/D conversion.
Plus its advanced video noise reduction technology to minimize noise and artifacts on the images.
- Advanced all-in-1 HDMI video converter switcher with composite RCA, S-Video, VGA, Component YPbPr and HDMI Inputs.
- Control 8 analog/digital video devices together without constantly swapping audio video cable connection.
- Supports total of 8 SD/HD type inputs including 3 HDMI, 1 VGA input, 2 component YPbPr input and 2 RCA A/V inputs.
- Any composite RCA video, component YPbPr video, VGA or HDMI video feeds will be up converted to 1080p at 50Hz by this device for large screen presentation.
- Converting all HDMI videos to 1080p HDMI at 50Hz.
- Converting composite RCA video audio to 1080p HDMI.
- Converting component YPbPr video audio to 1080p HDMI.
- Converting VGA video audio to HDMI at 1080p/50Hz.
- Dual digital audio outputs. Simultaneous digital audio outputs in coax S/PDIF and optical audio output for hookup with audio receiver or speakers for better sonic performance if needed.
- The RCA L/R audio coming from the RCA A/V or HD component video input source or the digital audio from the HDMI input source will be encoded into HDMI and optical/coax output at the same time.
- IR remote has individual video input buttons so users can change video input from one to another directly. No need to toggle through all video input channels.
- HDMI output resolution is fixed at 1080p at 50Hz.
- Advanced 10-bit processor for sharp digital images with vivid color depth during A/D conversion.
- Powerful video noise reduction technology is incorporated to minimize noise and artifacts on the images.
- HDMI 1.4/1.3, HDCP 1.1, and DVI 1.0 compliant receiver.
- Supports HDMI 1.4 with 3D color.
- Individual input LED indicators. The selected video input channel will be illuminated via the LED indicator on the front panel.
- Perfect for use in conference room, media center, tradeshow expo, entertainment event, classroom, home theater, retail store, etc.
- Composite RCA input x 2
- Component YPbPr input x 2
- VGA d-sub HD15 pin x 1
- HDMI input x 3
- Stereo RCA L/R x 2 for RCA/SV inputs
- Stereo RCA L/R x 2 for HD component video inputs
- 3.5mm x 1 for PC VGA input
- HDMI female x 1
- HDMI Output Resolution: 1080p at 50Hz
HDMI Input Support:
- 480p/576p, 720p (50/60 Hz), 1080i (50/60 Hz), 1080p (50/60 Hz)
- 640x480, 800x600, 1024x768, 1280x720, 1280x1024, 1680x1200, 1920x1080, 1920x1200
- VGA Input Support: from 640x480 to 1920x1080 pixels
- Component Video Input Support: 480i/576i, 480p/576p, 720p, 1080i,1080p
- Composite Video Input Support: 480i for NTSC or 576i for PAL
- Maximum Video Bandwidth: 2.25Gbps
- Push buttons on front panel
- IR remote controller
- Power Supply: 100V-240V AC with DC output at 5V, 1A
- All-in-1 HDMI converter/switcher
- IR remote
- DC power adapter
- User manual
