Multi-Format All To HDMI Converter Switcher With IR Remote RS232
Multi-Format All To HDMI Converter Switcher With IR Remote RS232
Multi-Format All To HDMI Converter Switcher With IR Remote RS232
Item#: HDV610
$225.00

Product Description

Multi-Format All To HDMI Converter Switcher With IR Remote RS232Multi-Format All To HDMI Converter Switcher With IR Remote RS232

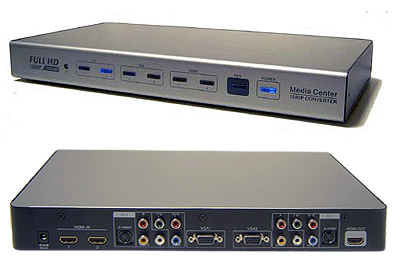

This multi-input multi-format HDMI multimedia processor combines features of video format converter and video/audio routing switch into one.

It is an advanced HDMI video converter switcher with composite RCA, S-Video, VGA, Component YPbPr and HDMI Inputs. Users can easily switch between all 10 analog/digital A/V inputs using the front panel push buttons or the IR remote for manual control or using RS232 link with PC for distant operation.

This HDMI video converter switcher helps users streamline their A/V setup by keeping those non-HDMI equipments and transforming them to HDMI format.

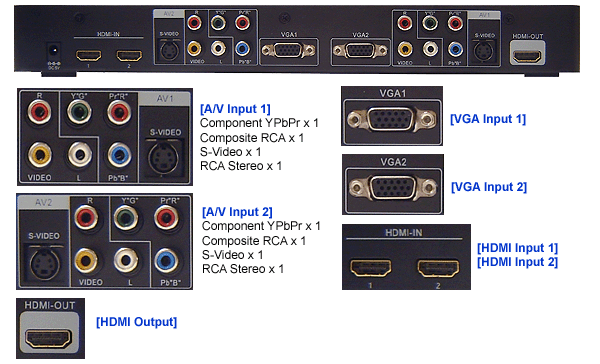

This multi-function HDMI video converter switcher can also be daisy chained with other HDMI DVI video switcher, HDMI DVI splitters for further installation. Ideal for setup in conference room, media center, tradeshow expo, classroom, and retail store.Back Panel Of allaboutadapters HDV610 Model

Advanced Analog To Digital Video Format Conversion
This HDMI video processor has advanced analog-to-digital converter function so it can convert CVSB, SVHS, VGA, YPbPr or HDMI video input sources into HDMI digital format for large screen presentation.
[Note]: This HDMI converter switcher does not have scaler built in so it will not scale any video to different resolutions. The HDMI output resolution follows the original SD or HD video input resolution.

10 In 1 Out Smart HDMI Video Switcher

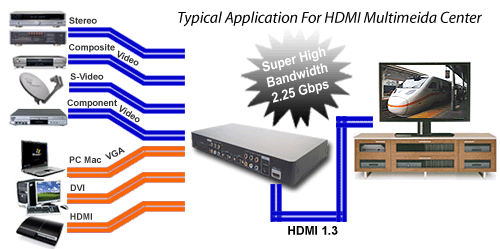

This video audio processor switch helps users manage hookup with up to 10 video sources together. Its easy switching makes users operate all the connected video sources effortlessly by using the supplied IR remote or the front push buttons.Application Setup Diagram For allaboutadapters HDV610

This HDMI video switcher provides users with the most comprehensive analog/digital video audio inputs including:

  • 3 HDMI inputs
  • 2 component YPbPr video inputs with associated stereo L/R inputs
  • 1 VGA input with associated 3.5mm audio input
  • 2 composite RCA video inputs with associated stereo L/R inputs
  • 2 S-Video inputs

Streamline Your Home AV Setup
This HDMI video processor helps users connect  their existing video equipments together with one HDMI output to TV display, projector or AV receiver.

No more cable mess scatting behind the TV or around the corner of the living room.

HDMI To HDMI
This HDMI video processor can automatically detect the HDMI input resolution and send out the same high quality HDMI video for TV or projector.

Front Panel Of allaboutadapters HDV610 ModelThe HDMI input/output of this unit are fully compatible with DVI-D inputs/outputs. And the HDMI or DVI output resolution will follow the original HDMI or DVI video input resolution. The supported HDMI or DVI-D input resolution are as follows:

  • 480p/576p, 720p (50/60 Hz), 1080i (50/60 Hz), 1080p (50/60 Hz)
  • 640x480, 800x600, 1024x768, 1280x720, 1280x1024, 1680x1200, 1920x1080, 1920x1200 pixels

Computer VGA To HDMI Conversion
This all-in-1 HDMI video processor easily convert the VGA output from laptop/desktop computer or DVR along with audio to HDMI format for the newer and larger flat panel DVI monitor or HDMI-based TV or projection display. Its HDMI output resolution will follow the original VGA input resolution.

A wide range of computer-based VGA RGBHV resolutions are supported as follows:

  • 640x480 pixels at 60Hz
  • 800x600 pixels at 60Hz
  • 1024x768 pixels at 60Hz
  • 1280x720, 1280x1024 pixels at 60Hz
  • 1600x1200 pixels at 60Hz
  • 1920x1080, 1920x1200 pixels at 60Hz

Component YPbPr To HDMI Conversion
This unit can convert all component YUV and YPbPr type video into HDMI format. The HDMI output resolution will follow the original component video input resolution.

Composite RCA Video To HDMI Conversion
This unit can also convert from composite RCA or BNC type video to digital HDMI video. The HDMI output resolution will follow the original composite video input resolution.

Fast Input Switching With Individual Source Buttons

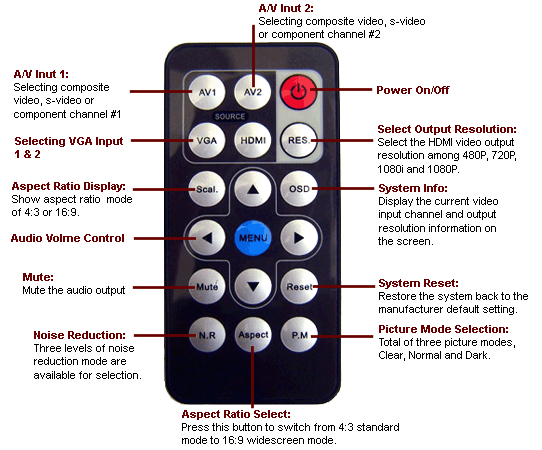

Users can control the input selection through using the supplied IR remote, front push buttons or RS232 console port.

Both IR remote controller and front panel have 10 individual source input buttons, one for each video input. So users can jump from one to another desired input directly.

The selected video input channel will be illuminated via the LED indicator on the front panel.

Advanced RS232 Serial Console Control
This unit supports RS232 link for distant control. RS-232 serial port command codes are easy to be implemented for integration with typical PC console or other A/V control system.

Selectable Audio Sync
The HDMI video processor/switcher also has a selectable audio delay function (150 milliseconds) which can be used to sync audio with the video signal when needed.

Advanced 10-Bit Video Engine
This HDMI video processor utilizes the advanced 10-bit processing. A 10-bit video processor helps increase color transition in digital format and increase the contrast ratio. Jagged images and burring edges will be reduced for smooth images.

3D Digital Noise Reduction for A/D Process
Powerful 3D video noise reduction technology is incorporated for removing the artifacts while maintaining fine image details.



  • Advanced all-in-1 HDMI video converter switcher with composite RCA, S-Video, VGA, Component YPbPr and HDMI Inputs.
  • Smart way to control up to 10 various analog/digital video devices on one HDMI flat display in a effortless way without constantly swapping audio video cable connection.
  • Supports total of 10 SD/HD type inputs including 3 HDMI, 1 VGA input, 2 component YPbPr, 2 RCA A/V and 2 S-Video inputs.
  • Mutli-format video converter for converting composite RCA, S-Video, component YPbPr, VGA and HDMI video to digital HDMI for output.
  • Supports wide range of computer RGB and SD/HD video input resolutions from 640x480 to 1920x1200 pixels and from 480i to 1080p.
  • Both IR remote controller and front panel have individual video input buttons so users can jump from one to the next input. No need to toggle through all inputs.
  • Supports easy RS232 command codes for distant control or integration with other A/V system.
  • HDMI output resolution will follow the original video input resolution.
  • Advanced 10-bit processor for sharp digital images with vivid color depth during A/D conversion.
  • HDMI 1.3, HDCP 1.1, and DVI 1.0 compliant receiver.
  • Adopts advanced 3D Y/C separation comb filter and and 3D noise reduction (DNR).
  • Supports Deep Color video up to 12-bit, 1080p (24/60) Hz.
  • High 2.25Gbps bandwidth with max pixel clock rate up to 225MHz to ensure no signal loss or degradation during transmission.
  • LED indicators for active input channel selection.
  • Perfect for use in conference room, media center, tradeshow expo, entertainment event, classroom, home theater, retail store, etc.
  • Support audio delay function for 150ms.
  • Video Inputs:
    • Composite RCA input x 2
    • S-Video input x 2
    • Component YPbPr input x 2
    • VGA d-sub HD15 pin x 1
    • HDMI input x 3
  • Audio Inputs:
    • Stereo RCA L/R x 2 for RCA/SV inputs
    • Stereo RCA L/R x 2 for HD component video inputs
    • 3.5mm x 1 for PC VGA input
  • Video/Audio Output:
    • HDMI female x 1
  • HDMI Output Resolution: same as the original video input feed
  • HDMI Input Support:
    • 480p/576p, 720p (50/60 Hz), 1080i (50/60 Hz), 1080p (50/60 Hz)
    • 640x480, 800x600, 1024x768, 1280x720, 1280x1024, 1680x1200, 1920x1080, 1920x1200 pixels
  • VGA Input Support:Front Panel Of allaboutadapters HDV610 Model
    • 640x480 pixels at 60/72/75/85Hz
    • 800x600 pixels at 60/72/75/85Hz
    • 1024x768 pixels at 60/7-/75/85Hz
    • 1280x720, 1280x1024 pixels at 60Hz
    • 1600x1200 pixels at 60Hz
    • 1920x1080, 1920x1200 pixels at 60Hz
  • Component Video Input Support:
    • 480i/576i, 480p/576p, 720p(50/60Hz),1080p(50/60 Hz)
  • Composite Video Input Support:
    • 480i for NTSC or 576i for PALBack Panel Of allaboutadapters HDV610 Model
  • Maximum Video Bandwidth: 2.25Gbps
  • Pixel Clock Rate:
    • TX: 25MHz ~ 165 MHz
    • RX: 25MHz ~ 225 MHz
  • Operation:
    • Push buttons on front panel
    • IR remote controller
    • RS232 console port connection with PC or other controlling system
  • Dimension: 280mm(W) x 147mm(D) x 44mm(H) or 11"(W) x 5.8"(D) x 1.7(H)
  • Power Supply: 100V-240V AC with DC output at 5V, 2.6A

  • HDMI processor/switcher
  • IR remote controller
  • DC power adapter
  • User manual
