This converter also helps users connect DVI video devices or computer DVI video graphic cards to HDMI compliant signal for display on HDTV set or HDMI monitors. A must-have HDMI video adapter for accommodating DVI video devices with your existing HDMI setup for streamlined operation.

This unit is well suited for use in home theater setup, presentation, multimedia applications, and staging work, etc.

Real-Time HDMI Audio Encoding
The converter allows users to insert 2-channel and multi-channel digital sound signals to the existing digital video feeds. It gives users the capability to select their favorite audio formats for encoding and re-generate a new HDMI feed while extending your audio signal. All Dolby 5.1, Dolby Digital, DTS and PCM 2-channel inputs are supported by this HDMI audio encoder.

Typical applications for this product such as:

• filtering out the original audio embedded in HDMI signal and mixing with different digital audio type or different audio format for studio production.
• adding new external audio input to DVI or HDMI signal for new HDMI output.
• combining computer DVI output with computer sound card audio or other digital audio input together for single HDMI link with other HDMI setup.

[Note]: This unit can also encode analog stereo audio to the original HDMI signal for new HDMI output when combing with our analog to digital audio converter.

DVI to HDMI Format Converter
This HDMI audio encoder is also a digital video format converter for transcoding the DVI-D signal to HDMI compliant output allowing the viewing or switching of a DVI signal on an HDMI system. It adds the HDMI output capability to single-link DVI sources such as DVI-based apple computers, desktop PC or digital media player so users can use HDMI compliant displays with them.

The output HDMI resolution will follow the DVI input resolution. This DVI to HDMI converter supports a variety of DVI HD resolutions and computer DVI/HDMI resolutions as follows:

• Computer DVI type: 640x480,800x600,1024x768,1280x1024,1280x720,1920x1080,1920x1200 pixels
• DVI HD type: 480i/576i, 480p/576p, 720p,1080i,1080P

Digital Audio Pass Through
This HDMI audio encoder also supports audio pass-through via its built-in signal repeater. Both optical audio input and coax S/PDIF input will be routed and passed through its own optical /coaxial output accordingly for further distribution and broadcasting purpose.

Easy Setup

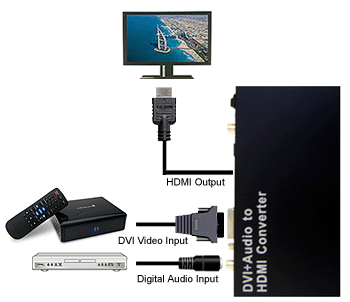

Simply use a DVI cable or DVI to HDMI adapter cable for connecting a DVI or HDMI device to the input side of this HDMI audio encoder. Then connect the digital audio cable to the audio input of this unit. Then use a HDMI cable to connect from the HDMI output of this converter to the HDMI display or HDMI switcher or receiver.

Sharp Image Quality
With an operating frequency of up to 340MHz, output images are crystal clear and detailed.

• Encodes new digital audio onto the existing HDMI signal for new HDMI output.
• Must-have digital video adapter for accommodating DVI video devices with your existing HDMI setup for streamlined operation and setup.
• Combines computer DVI video or all other HD DVI video with external S/PDIF audio input together for HDMI display or integration with other HDMI equipments.
• Replace the original HDMI audio with different audio feeds or different audio format for broadcasting.
• Supports all Dolby 5.1, Dolby Digital, DTS and PCM 2-channel inputs.
• Fully supports HDMI 1.3b with HDCP 1.0/1.1 compliance.
• Featured with dual digital audio inputs in Toslink and coaxial format.
• Supports digital audio pass through.
• Supreme high operating frequency of up to 340MHz for sharp and detailed picture output quality.
• Supports all HDTV resolutions up to 1080p.
• Supports computer DVI RGB resolutions up to 1920x1200 pixels.
• Sturdy metal enclosure.
• Ideal for using in applications such as home entertainment, video conference, home theater, business presentation, classroom and so on.

• Input Video Signal: 1.2 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Output Video: HDMI 1.3b + HDCP 1.0/1.1
• Video Resolution Support
  • 640x480,800x600,1024x768,1280x1024,1280x720,1920x1080,1920x1200 pixels
  • 480i,576i,480p,576p,720p,1080i,1080p

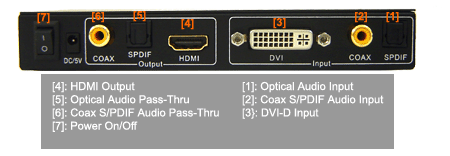

• HDMI Connector: type A (19 pin) female
• DVI Connector: DVI-I (29 pin) female (digital only)
• Audio Connectors:
  • Toslink x 2 for optical audio input and output
  • Coax x 2 for S/PDIF audio input and output
• Operation Frequency: Up to 340Mhz maximum
• Operating Humidity: 10% to 85 % RH (no condensation)
• Storage Humidity: 5% to 90 % RH (no condensation)
• Power Supply: 110V-240V AC in with 5V DC, 2A output
• Power Consumption: 5 watts (max)
