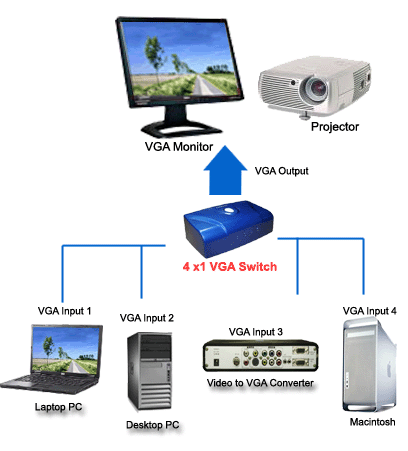

Share a VGA monitor,
projector, HDTV or any other RGB displays with four VGA sources like desktop/laptop PCs, or other systems with VGA
outputs !

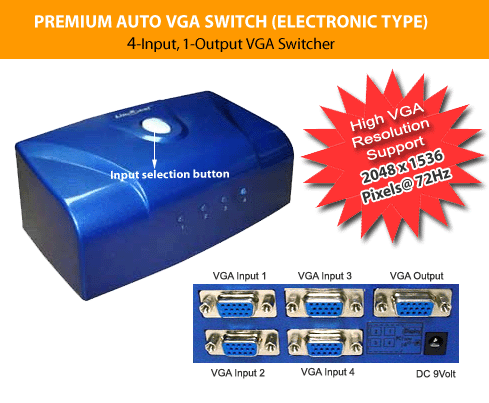

This is an ultra-high resolution VGA switcher designed for routing the selected VGA input to a data display such as a data monitor, presentation monitor, or data projector. Featured with 15-pin HD connectors for inputs and output and connects directly to VGA-type video sources and displays.
Designed to support today's high-resolution displays and supports Windows and Mac with analog RGB function and multi-scan display.
Front Panel Input Selector - Users may select the desired input by pressing the selection button easily. Each time the button is pressed the unit toggles between Input 1, 2, 3 and Input 4. Front panel LED indicators illuminate to indicate the currently selected input. The non-selected input is terminated into 75 ohms.
Perfect video switch for events like presentations, classrooms, control center, remote monitoring & training facilities.
- High resolution automatic VGA switch box with support up to 2048 x 1536 @ 72Hz.
- Electronic video switch for use with all analog flat panel, projectors, VGA monitors, HDTV monitor and other video display devices with VGA port.
- Superior video integrity and provides
clear & sharp images.
- Works on any hardware platform with all operating systems including Windows & Mac OS.
- Push button switch for selecting desired VGA input.
- 15-Pin HD Input and Output connectors.
- Compatible with all VGA, SVGA, XGA, XGA2, UXGA signals at high refresh rate and pixel frequency.
- Supports all multi-sync monitors.
- Automatic incoming signal selection.
- Daisy-chain with a VGA multiplier/splitter to switch and split the signal at the time.
- Hot swappable.
- Well suited for a wide range of A/V installations, portable presentation systems and rental applications.
- Sturdy metal case enclosure.
- Save space and use one monitor with two computers.
- Graphic designers, CAD Applications, and hard-core gamers as well as the average user.
- Ideal for demos, multimedia presentation and meeting room/conference rooms.
- Public broadcasting systems, merchandising and church bible study group.
- Educational/training environment .
- Perfect mate for video games and entertainment.
| Input Connector | 4x HD-15 pins VGA connectors (female) |
| Output Connector | 1x HD-15 pins VGA connector (female) |
| Max VGA Resolution Support | 2048x1536 pixels @ 72 Hz |
| VGA Input Selection | Front Panel Push Button |
| Power Supply | DC 9V Power Adaptor |
| Size | 6 inch (W) x 3 inch (D) x 2 inch (H) |
| LED Indication | Selected VGA Input |
