2-in-1 PCMCIA USB 2.0/Firewire Combo Card

Home > Input/Output Adapters > 2-in-1 PCMCIA USB 2.0/Firewire Combo Card

Product Description

2-in-1 4-port PCMCIA CardBus Card ( 2x USB 2.0 + 2x Firewire)
This super combination CardBus adapter features two high-speed connectivity technologies, USB 2.0 and IEEE 1394 (FireWire) connections, on a single PCMCIA card. It saves you money and take up only one card slot on your notebook PC.

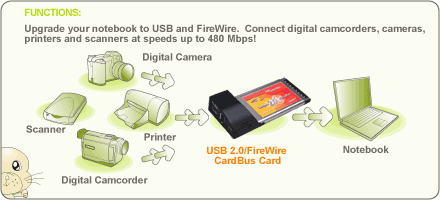

With this card added into your older laptop PCs, It includes 2 of the USB 2.0 ports and two of the IEEE 1394 Firewire external ports, which instantly provides better performance on the speed connection and data transfer for printer, scanner, PC camera, storage, and Broadband network connections. Allows you to take full advantage of the USB 2.0 and Firewire technology on your current systems.

This card can also automatically switches to the highest speed if supported by the peripherals connected ! Users can take advantage of the scalability that USB 2.0 products and DV Firewire 1394 products provide.

Hot Pluggable - you may connect any USB or Firewire devices without restarting the computer.

Supports all Windows-based laptop PCs. Use this USB 2.0 + Firewire IEEE 1394 PCMCIA combo adapter card to upgrade or expand the ports in your laptop PC or replace/expand your existing USB 2.0 ports/Firewire ports if they are bad !

Optional power adapter cable is included for connection with high current consumption devices like external USB DVD burner, exteranl USB/Firewire hard drive !

Why the power adapter is needed for some USB 2.0 or Firewire devices ?

Answer: Use of the power adapter is optional. However it can ensure users that the maximum full 500mA bus power is available to those high power bus-powered USB/Firewire DV devices. Cards that do not include a power adapter are not able to provide a full 500mA of power on each port. So you may have trouble using those high USB/Firewire bus-powered devices like external USB storage, scanners, CD-RW drives, hard drives, Zip drives, PDAs due to insufficient bus power provided from the ports connected.

Features for USB 2.0

Supports Windows 98SE/ME/2000/XP/Vista.
Dual hi-speed USB 2.0 ports (32-Bit CardBus).
Supports Plug & Play and Hot-Swapping of all USB 1.1/2.0 devices.
Supports High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps).
Fully backwards compatible with USB 1.1 devices.
Auto detect speeds and connections of USB devices.
Guarantees full 5V/500mA Bus Power to be shared by any 2 USB devices.
Optional power adapter cable is included to ensure full bus power for operations with high-powered USB devices such as USB storage, scanners, CD-RW drives, hard drives, Zip drives
Current Protection Active lf Bus Power Over 500mA.
USB connection support for up to 128 devices in peer-to-peer connection.
No additional dongle or cables needed. Compact design, perfect for the mobile professionals.

Features for Firewire

2 Firewire DV ports ( one 6-pin and one 4-pin mini DV port).
Supports video capturing in ture digital DV format via Firewire interface from the miniDV camcorders & other video recorders with DV out ports.
Universal compatible with all makes of DV camcorders including Canon, JVC, Sony and Panasonic.
Video and audio captures always in sync to ensure video data integrity with no worry of the conversion loss.
Plug and play. No driver installation needed.
OHCI Based Architecture Link Layer Chip Included.
Connect up to 63 firewire-enabled external devices per firewire port.
Hot swap support for all the FireWire peripherals. Full support of real time dynamic insertion and removal of devices.
Support easy networking and data link between two firewire-ready PCs running WinXP.
Fits with all laptop PCs through the PC card slots and provides a digital video input & output.
Supreme high speed video/data transfer rates up to 400 Mbps.

32-bit CardBus PC Card Type II standard compliant
Supports device hot swap and wake-up

USB 2.0 Interface

2 of the USB type A connectors.
USB 2.0 specification compliant.
Open Host Controller Interface specification for USB Rev 1.0a compliant.
Enhanced Host Controller Interface specification for USB Rev. 0.95 compliant.
Hi speed data transfer rate: High speed at 480Mbps, Full speed at 12Mbps & Low speed at 1.5Mbps.
External 5V DC jack for high current consumption devices.

Firewire 1394A Interface

1 of the 6-pin 1394a port plus 1 of the 4-pin mini 1394a port.
IEEE 1394 Standard compliant for high performance serial bus and P1394A Supplement 4.0.
1394 OpenHCI specification V1.0 and V1.1 compliant.
Various data transfer mode at 100/200/400 Mbps.

System Requirements

Windows 98SE/ME/2000/XP/Vista
300 Mhz or faster CPU speed
One available PCMCIA CardBus slot

2-in-1 PCMCIA CardBus combo card
Installation sheet
Driver CD disk
USB power wire
4-pin to 6-pin Firewire Cable
