This super combination Expresscard adapter features two high-speed connectivity technologies, USB 2.0 and IEEE 1394 (FireWire) connections on a single PCMCIA Expresscard slot. It saves you money and take up only one card slot on your new laptop PC.

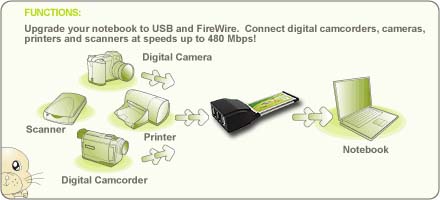

With this card added into your new laptop PCs, you instantly expand your laptop with USB 2.0 ports and two of the IEEE 1394 Firewire external ports, which provides better performance on the speed connection and data transfer for printer, scanner, PC camera, storage, and Broadband network connections. Allows you to take full advantage of the USB 2.0 and Firewire technology on your current systems.
This express card can also automatically switches to the highest speed if supported by the peripherals connected ! Users can take advantage of the scalability that USB 2.0 products and DV Firewire 1394 products provide.
New ExpressCard 34mm Standard
ExpressCard technology draws upon many of
the features of existing PC Card technology. There are also significant
differences between the two.
- New Smaller Size: ExpressCard modules are roughly half the size and lighter.
- New Faster Speed: ExpressCard modules are capable of speeds up to 2.5X faster than CardBus and 40X faster than 16-bit I/O PC Cards (depending on the application).
- New Design: ExpressCard standard takes advantage of latest technology advancements to simplify the design and eliminate the need for a controller.
- Ease Of Use: The modules are hot-swappable between mobile and desktop systems.
- Less Power Required: ExpressCard modules require less power.
Expand Or Replace The
I/O Ports From Your Laptop PC
USB ports or Firewire ports on laptop PC
these days are fragile and limited due to the smaller form factor of the newer
laptop computer adopted. And they are very easy to be broken due to the mobile
way of operation or quality design of the manufacturer.
Use this USB 2.0 + Firewire IEEE 1394 PCMCIA Expresscard combo adapter card to instantly expand your laptop PC with more high speed USB 2.0/Firewire ports or replace your existing USB 2.0 ports/Firewire ports if they are bad.
 |
 |
No Driver Installation Needed
Install this adapter card
to your laptop in 10 seconds ! Windows will automatically find all the drivers
needed and install for users automatically. Never worry about losing driver cd
disc.
Hot Swappable
Hot swap support for all
the USB and FireWire peripherals. Full
support of real time dynamic insertion and removal of devices.
Users may disconnect and reconnect any USB or Firewire devices without restarting
the computer.
Supports All Windows OS
This adapter card can be
used in Windows 2000, XP, XP 64bit, Sever 2003, Vista.
ExpressCard
USB 2.0
|
ExpressCard
Firewire
|

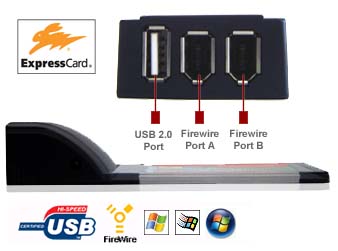

ExpressCard USB 2.0 Interface
- USB 2.0 Type A connector x 1.
- USB 2.0 specification compliant.
- Open Host Controller Interface specification for USB Rev 1.0a compliant.
- Enhanced Host Controller Interface specification for USB Rev. 0.95 compliant.
- Hi speed data transfer rate: High speed at 480Mbps, Full speed at 12Mbps & Low speed at 1.5Mbps.
- External 5V DC jack for high current consumption devices.

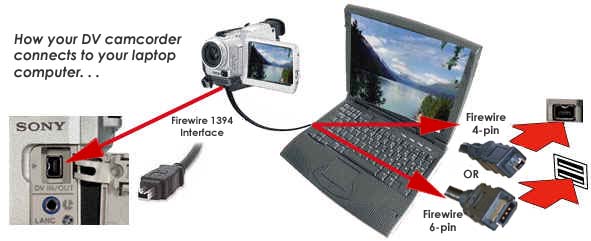

ExpressCard Firewire IEEE 1394 Interface
- 6-Pin IEEE 1394A connector x 2
- IEEE 1394 standard compliance for high performance serial bus and P1394A Supplement 4.0.
- 1394 OpenHCI specification V1.0 and V1.1 compliant.
- Various data transfer mode at 100/200/400 Mbps.

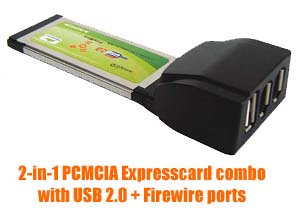

- 2-in-1 PCMCIA Express combo card
- Installation sheet
- 4-pin to 6-pin Firewire Cable x1
