Wireless Audio/Video Transmitter Kit With IR Remote Control Extender
Now you can enjoy the stereo audio and clear video reception anywhere in the house or office without having to run wires thru the walls or under carpets by using this wireless A/V transmitter kit.

This wireless A/V transmitter also has a built-in remote control sender. That means you can take the remote control to your bedroom and still be able to control your cable box, satellite or DVD player downstairs. Users can directly control what they are watching on the remote TV monitor just as easily as if the audio video source were directly connected to remote TV display.

Using this package for wireless broadcasting to make life easier and more entertaining in many ways. No extra wires to deal with and no more construction for cable installation.

The setup of this kit is easy that any one can do it in minutes. You will be able to start watching cable TV or satellite video on the bedroom TV without using separate receiver or additional cable box. Watch DVD in the kitchen without moving the DVD player from the family room or listen to the favorite music played from CD player downstairs on powered speakers throughout the house wirelessly.

Crystal Clear Picture And Sonic Quality
This wireless A/V sender system provides vivid color video with stereo sound through its RF frequency broadcast instead of the traditional cable runs. Strong 2.4 GHz signal travels from location of your A/V source equipment through walls, floors, across the hallway or from the basement to the TV upstairs.

Easy Local Area Audio Video Broadcasting
Each standard package has one transmitter paired with one receiver per set. However each wireless transmitter unit can support unlimited number of receiver units at the same time when all units are on the same frequency channel. This expansion capability is far greater than all other models supporting up to 4 or less receivers max.

User can easily expand the scale of wireless broadcasting by adding more receivers as needed to the setup. Great way to set up local area broadcasting of AV programs from single source to multiple locations within the range.

Interference-Free Operations

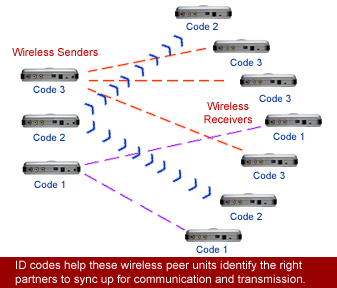

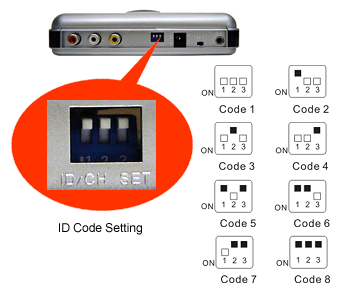

This wireless video audio sender is featured with unique ID code design. Each transmitter(TX) and receiver(RX) unit has a dip switch for setting its own ID code and there are total of 8 different codes to be assigned for each unit. This is advantageous for multiple sets of TX's and RX's needed to be deployed closely in the same area. When all units working together in the same range, transmitters will not not interfere with each other. And receivers will communicate with the corresponding transmitter bearing the same ID code and transmitters will not confuse other receiver units in the same surrounding neighborhood.

Universal Remote Control Range Extender
This wireless kit can also be used as a remote control extender. This device can convert the infrared remote signal  into a more powerful RF radio signal in order to effectively penetrate through walls, floors and ceilings and direct the control signal to another location. Users can easily use this extended remote control signal to operate the household electronics from upstairs or across the hallway.

The remote control extender function of this kit provides truly universal compatibility with all remote controllers because of its wide range support of IR data rate up to 60 KHz, not like other cheaper remote extenders with limited support up to 30 KHz only. So users will have no problem taking any kind of remote and controlling the home electronics from distance through this kit. This is import since some manufacturers of the STB/satellite receivers adopts the higher 38Khz to 58Khz range for the design of their remote controls. Regular remote extender models may just not work with your satellite's remote.

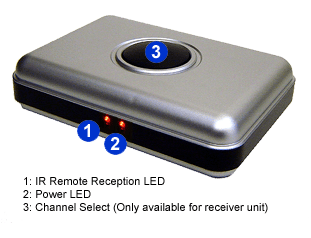

Stay totally in control of your favorite TV channels, CD music or FM/AM radio from different area of the house or office. Users can control the video/audio source equipment remotely from the nearby location by aiming the  remote control toward the front of receiver unit, which has a IR remote control antenna built in for relaying your remote control signal back to the source through the connected wireless transmitter unit.

Standard Composite Video Audio Transmission
This wireless kit is good for all standard analog video and audio applications. With the help of this wireless audio video transmitter kit, users can easily send and receive wireless broadcasting of video audio signals from one room to another from any A/V components with composite RCA type outputs such as satellite receiver, cable box, digital TV converter box, TiVo, DVR, CCTV surveillance camera or DVD player. And its paired receive can output to any standard TV, flat panel TV, projection display, home theater system/receiver or powered speakers through stereo system.

• Send sharp vivid video, hi-fi stereo sound and remote control signal around the house without wired cable connection.
• Sturdy enclosure with built-in high gain antenna for superior wireless signal transmission and reception.
• Powerful RF transmitter built in so wireless signals can penetrate effectively through walls and floors.
• Support all analog A/V devices such as satellite receiver, TiVo, DVD player, video camera or stereo system.
• Each transmitter unit can work simultaneously with unlimited number of receiver units.
• Easily expand the scale of wireless broadcasting by adding more receivers to the setup.
• 4 selectable channel frequency for wireless transmission.
• Users can control the channel frequency used for wireless transmission solely from the receiver end.
• Featured with unique ID code design for all units when multiple wireless sets need to work together. Each receiver will sync up with the corresponding transmitter unit with the same ID code setting.
• Transmission range up to 300 feet with clear line of sight, 50-100 feet (through walls) for audio and video signals.
• Remote control signal extension up to 100 feet max with clear line of sight.
• Remote control extension feature converts IR remote signal to powerful RF radio signal for longer range transmission so users can easily control A/V devices from another room or upper floor.
• Universal compatibility with all remote controllers in the market due to the wide range of IR data rate up to 60 KHz, not like other cheaper remote extenders with limited support up to 30 KHz only.
• Supports NSTC and PAL inputs/outputs.
• Served as wireless surveillance system or nursing monitor when used with camcorder or other video surveillance cameras.
• Easy setup in minutes with low power consumption.

Entertainment

• Watch and control TV video channels or DVD movies from cable box, digital TV converter, satellite receiver or DVD player wirelessly from another room without complex construction or long cable run.
• Listen and control the hi-fi CD player through any powered speakers over the house, patio or pool area.
• Watch the internet video or computer DVD on TV when combined with use of PC to TV scan converter.
• Transmit internet music or radio from computer upstairs through the Hi-Fi stereo system downstairs.

Business

• Monitor warehouse, store floor or parking lot without running wires or expensive equipments.
• Remote control the electronic equipments wirelessly from another location.
• Work with any video camera and video recorders for live viewing and video capturing.

Surveillance

• Turn camcorder or video camera as nanny cam or nursing monitor to watch out for infants, children, seniors or disabled family members.
• See who is outside the house or front door on TV using regular CCTV surveillance cam or DVR system.
• Keep tabs on the private swimming pool, garage, front door or any area of your property.

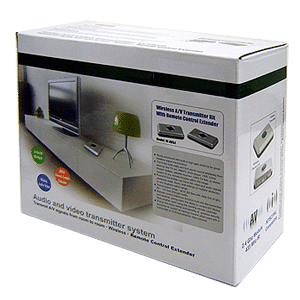

• Wireless A/V transmitter unit x 1.
• Wireless A/V receiver unit x 1.
• Infrared remote extender wire for transmitter use.
• Power adapter x 2 (110V AC with DC 9V, 500mA)
• Composite RCA cable set x 2
• User manual
