3-Port HD Component Composite PC RGBHV Video Splitter + Digital Stereo Audio Splitter

This all-purpose video/audio distributor with built-in amplifier is the perfect splitter solution for anyone who needs to broadcast one single video/audio source to multiple TV displays, A/V receivers, speakers or recorders at the same time.

The built-in signal booster enhances the video/audio quality and provides several identical outputs sharp and crystal clear outputs like the original input for simultaneous broadcasting on HDTV set, Plasma TV, LCD TV, LCD/DLP projector, other video monitors, audio receiver, home theater system, pre-amp and so on . A very versatile video and audio processor unit for presentations, video entertainment system and home theatre applications.

This is the only splitter model in the market that can handle multiple video and audio input and output formats for displays or signal extension . This A/V splitter supports the following:

• Any HD or SD resolution is supported including 480i,576i,480p,576p,720p,1080i and 1080p.
• Any NTSC, PAL or SECAM video is supported.
• Any PC VGA signal up to 2048 x 1536 pixels at 60Hz is supported.
• Any digital S/PDIF, DTS digital surround, Dolby Digital 5.1 digital or stereo audio is supported

Impress your audience with high-resolution multi-screen presentations ! Perfect for public video broadcasting, classrooms, tradeshows, or in-store displays where high quality video on several monitors is needed. flexible and cost-effective solutions a wide variety of applications including boardrooms, training facilities, home theater, media control centers, digital signage, rental and staging environments, remote monitoring at airlines, restaurants, production and industrial control, security companies etc.

This splitter can also be cascaded together for an unlimited number of installation with numerous TV/monitoring displays and speakers.  A built-in booster/amplifier circuit will boost the signal to the needed level to prevent signal loss and picture degradation during signal transmission. It allows for the audio and video signal to be transmitted effectively for 500 ft or more far away from the source location.

This versatile A/V splitter can serve multiple purposes as follows:

3-Port HDTV Component Video Splitter
A perfect HDTV distribution solution for anyone who needs to simultaneously distribute video and audio from a single high definition source to multiple locations. Great broadcasting equipment for all HDTV component video devices such as satellite receiver, HD cable box, video game console, DVD player  and so on.  All outputs are available to be used in part or in full.

It is capable of supporting all HD component video up to 1080p in YPbPr/CbCr, RGsB, YUV and RGBHV format.

Featured with supreme high bandwidth of 480Mhz, this splitter's built-in booster circuit can transmit the HD signal effectively 500 ft away from the central source depending on the cable quality.  Any HD or SD resolution is supported including 480i,576i,480p,576p,720p,1080i and 1080p.

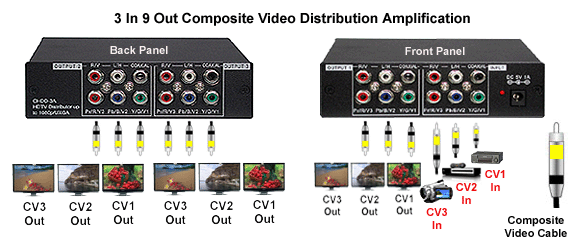

9-Way Composite Video Splitter
When using as a composite video splitter, this A/V distribution amplifier allows users to have up to total of 9 TV displays and speaker to be driven by 3 different video/audio device hooked up to this splitter !

There are 3 composite video inputs on this splitter and each input will buffer and replicate the video feed into 3 outputs, resulting in total of 9 outputs from all 3 inputs with excellent signal strength and quality for transmission.

This splitter device works with all NTSC, PAL or SECAM signals and the package also provides DC power adapter with universal plug kits for use in all countries.

Again, this distribution amplifier allows for cable runs of 500 feet or more, depending on the quality of the video cable used.

3-Port PC VGA RGBHV Splitter
How it works
Once you use a 15-pin D-sub to 5 RCA breakout cable to connect between the VGA port of the PC and the 5 RCA input jacks marked as R,G,B,H,V on this splitter, you are done for the input.  Next run another 3 sets of the same 15-pin D-sub to 5 RCA breakout cable from the RGBHV outputs of this splitter to the VGA input of your VGA monitors or HDTV display for output, instantly you will see the same computer screen being broadcast live on 3 monitors or projection TV at the same time with sharp and crisp images.

This 3-port VGA splitter supports high VGA input and output resolution up to to 2048 x 1536 pixels at 60Hz from any VGA-based device like laptop or desktop computers.

3-Port Digital Coaxial / Stereo Audio Splitter
This splitter also supports digital S/PDIF and analog stereo audio signals for input. It can be used to split audio output devices like CD or DVD players, home theater systems satellite or cable box or any other audio / video device. This is essential when you want to use one audio source with many amplifiers in a multi-zone system. For example, a 200-disc DVD changer can be fed to the home theater system in the main room, the HDTV for the conference room, speakers in the patio or back yard plus another HDTV in the bedroom.

Audio input is through digital coaxial or RCA left/right channel of this splitter box and supports all digital audio format including S/PDIF, DTS Digital Surround and Dolby Digital 5.1 digital.



• 3-port video audio splitter with built-in booster for all HD/SD video and digital/stereo devices to broadcast video & audio from a single source to multiple destination devices.
• All-in-1 splitter for HD component video, composite video, PC VGA/RGBHV and digital/stereo audio signals.
• Designed to extend and maintain video and audio signals over long cable runs while maintaining the quality and strength of the original source for each output.
• Doubles as video repeater for long cable runs and maintain audio/video signal integrity all the way.
• Splits each input signal into 3 identical and buffered outputs via RCA and digital coaxial connectors for TV display, video recorder, presentation room and conferencing equipments.
• Units can be daisy chained together for an unlimited number of installation with TV/monitoring displays and speakers without degradation to the picture or sound quality.
• Super high 480Hz bandwidth provides excellent signal strength and quality and allows for cable runs of 500 feet or more depending on the quality of the cable used.
• Supports all HDTV and RGBHV resolutions including 480p,720p,1080i and 1080p.
• Work with NTSC, PAL, or SECAM signals.
• Supports all PC VGA RGB resolutions up to 2048x1536 pixels.
• Supports all digital S/PDIF, DTS Digital Surround and Dolby Digital 5.1 digital signals.

• When input is composite video signal, this video multiplier can allow for connection with 3 different video devices and output 3 identical and buffered signal for each input source, resulting in total of 9 outputs.

• Ideal for presentation, video entertainment and home theatre applications.
• Heavy-duty metal housing provides excellent shielding

• Inputs:

  • 1 of Component video input via 3 RCA connectors 1 Vp-p@ 75 ohm

  • 1 of PC VGA/RGBHV input via 5 RCA connectors 1 Vp-p@ 75 ohm

  • 3 of Composite video inputs via RCA connectors 1 Vp-p@ 75 ohm

  • 1 of Digital S/PDIF audio input via coaxial connector

  • 1 of Stereo audio input via 2 RCA connectors

• Outputs:

  • 3 of Component video outputs via 3 RCA connectors 1 Vp-p@ 75 ohm

  • 3 of PC VGA/RGBHV outputs via 5 RCA connectors 1 Vp-p@ 75 ohm

  • 9 of Composite video outputs via RCA connectors 1 Vp-p@ 75 ohm

  • 3 of Digital S/PDIF audio outputs via coaxial connector

  • 3 of Stereo audio outputs via 2 RCA connectors

• Analog audio input/output: Audio 2 Vrms max 47k ohm.

• Horizontal/Vertical Sync: 5Vp-p max

• Horizontal Frequency: 10KHz~100KHz

• Vertical Frequency: 20Hz~200Hz.

• Bandwidth: 480MHz (-3dB)

• Differential gain: 0.05%

• Differential phase: 0.05 degree

• Power: 5V 2A~1A

• Dimension: 5.5"(W) x 1.5"(D) x 4.1"(H)
