1 In 8 Out HD Component Composite Video Splitter Digital Stereo Audio Splitter

The built-in signal booster enhances the video/audio quality and provides several identical outputs sharp and crystal clear like the original input for simultaneous broadcasting on HDTV set, Plasma TV, LCD TV, LCD/DLP projector, video monitor, audio receiver, home theater system, pre-amp and so on.

This is the only splitter model in the market that can handle multiple video and audio input and output formats for displays or long distance transmission. This A/V splitter supports the following:

• Any HD or SD resolution via component video format is supported including 480i,576i,480p,576p,720p,1080i and 1080p.
• Any NTSC, PAL or SECAM video via composite video format is supported.
• Any digital S/PDIF, DTS digital surround, Dolby Digital 5.1 digital via coax format.
• Andy stereo audio via RCA composite format.

Impress your audience with high-resolution multi-screen presentations ! Perfect for public video broadcasting, classrooms, tradeshows, or in-store displays where simultaneous video displays on multiple location are needed.

This audio video splitter provides a flexible and cost-effective solution for  a wide variety of applications including boardroom meeting, home theater setup, media control room, digital signage, rental and staging environments, remote monitoring at airlines, restaurants, production and industrial control, security companies etc.

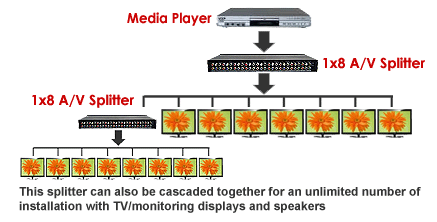

This splitter can also be daisy chained together for an unlimited number of installation with numerous TV/monitoring displays and speakers.  A built-in booster/amplifier circuit will boost the signal to the needed level to prevent signal loss and picture degradation during long cable run. It allows for the audio and video signal to be carried through effectively for 500 ft or more far away from the source location.

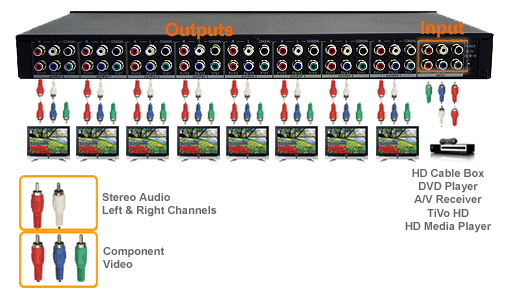

8-Port HD Component Video Splitter
A perfect HD A/V distribution solution for anyone who needs to split video and audio from a single high definition source to multiple locations. Great broadcasting equipment for all HDTV components such as satellite receiver, HD cable box, video game console, DVD player  and so on.  All outputs are available to be used in part or in full.

Featured with supreme high bandwidth of 480Mhz, this splitter's built-in amplifier circuit can transmit the HD signal effectively 500 ft away from the central source depending on the cable quality.

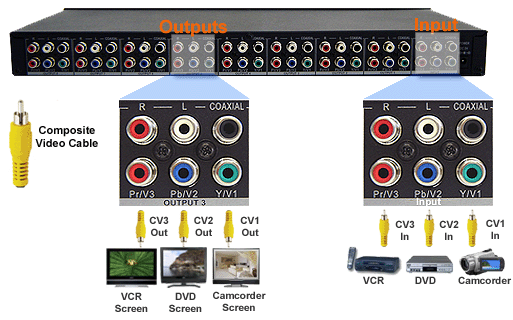

24-Way 3x8 Composite Video Splitter
When using as a SD A/V splitter, this A/V distribution amplifier allows users to have up to total of 24 video displays and speakers to be driven by 3 different composite video/audio input devices for simultaneous presentation !

There are 3 composite video inputs on this splitter and each input will buffer and replicate its own video feed for up to 8 simultaneous outputs, resulting in total of 24 video outputs from all 3 inputs with excellent signal strength and quality for transmission.

This splitter device supports worldwide video systems including all NTSC, PAL or SECAM signals and the package also provides DC power adapter with universal plug kits for use in all countries.

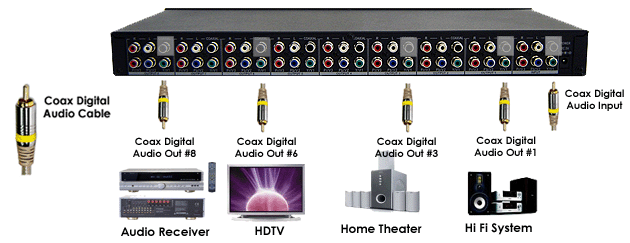

8-Port Digital Coaxial / Stereo Audio Splitter
This splitter also has digital S/PDIF inputs and stereo audio input. It can be used to split the audio input from audio devices like CD or DVD players, home theater systems satellite or cable box into 8 simultaneous audio outputs for different receiving ends. This is essential when you want to use one audio source with many amplifiers in a multi-zone system. For example, a 200-disc DVD changer can be fed to the home theater system in the main room, the HDTV for the conference room, speakers in the patio or back yard plus another HDTV in the bedroom.

Its audio input is through digital coaxial or RCA left/right channel and supports all digital audio format including S/PDIF, DTS Digital Surround and Dolby Digital 5.1 digital.

• All-in-1 multi-function splitter amplifier solution for component video, composite video, stereo audio and digital audio signals.
• The only audio/video splitter model in the market that can handle multiple HD/SD video and digital/analog audio distribution amplification for broadcasting use .
• Delivers both high definition and standard video signals including audio with a choice of analogue or digital audio to 8 video displays or recorders at the same time.
• Provides buffering and isolation for each A/V input and distributes signals to multiple identical outputs for TV display, video recorder, presentation room and conferencing equipments.
• Supports all HD and SD resolutions including 480i, 480p,720p,1080i and 1080p.
• Supports all NTSC, PAL and SECAM systems.
• Supports all digital S/PDIF, Dolby, AC-3,Dolby Digital 5.1 and DTS digital signals.
• Each of the 3 composite video inputs will be routed to 8 composite video outputs accordingly, resulting in total of 24 video displays in 3 groups.
• Designed to extend and maintain video and audio signals over long cable runs while maintaining the quality and strength of the original source for each output.
• Units can be daisy chained together for an unlimited number of installation with TV/monitoring displays and speakers without degradation to the picture or sound quality.
• Super high 480Hz bandwidth provides excellent signal strength and quality and allows for cable runs of 500 feet or more depending on the quality of the cable used.
• Heavy-duty metal housing provides excellent shielding

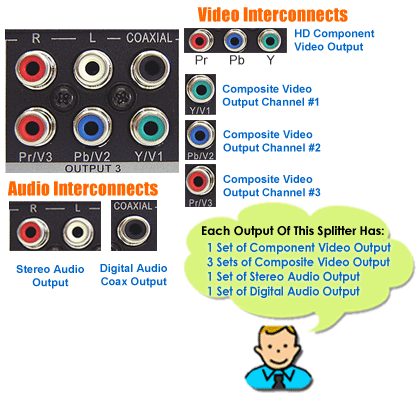

• Inputs:
  • 1 component video input via 3 RCA connectors 1 Vp-p@ 75 ohm
  • 3 composite video inputs via RCA connectors 1 Vp-p@ 75 ohm
  • 1 digital S/PDIF audio input via coaxial connector
  • 1 stereo audio input via 2 RCA connectors
• Outputs:
  • 3 component video outputs via 3 RCA connectors 1 Vp-p@ 75 ohm
  • 8 groups of composite outputs via RCA connectors 1 Vp-p@ 75 ohm
  • 3 digital S/PDIF audio outputs via coaxial connector
  • 3 stereo audio outputs via 2 RCA connectors
• Analog audio input/output: Audio 2 Vrms max 47k ohm
• Horizontal/Vertical Sync: 5Vp-p max
• Horizontal Frequency: 10KHz~100KHz
• Vertical Frequency: 20Hz~200Hz.
• Bandwidth: 480MHz (-3dB)
• Differential gain: 0.05%
• Differential phase: 0.05 degree

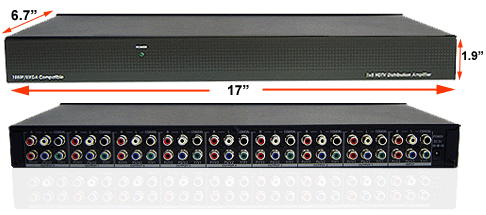

• Dimension: 17"(W) x 6.7"(D) x1.9"(H)
• Power: 5V~1A

• 8-port HD/SD A/V splitter
• Power adapter
• User manual
• 1 composite video cable for input
• 1 set of component video cable for input
• 1 set of RCA stereo cable for input
