In 4 Out VGA Video Splitter VGA Distribution Amplifier
This VGA splitter is a great video
distributor to duplicate the computer video for more displays and also boost the
the video signals to longer distance without any quality loss over the long
cable run up to 210 feet without signal loss, making this VGA splitter an excellent choice for computer video
broadcast systems.
This VGA RGBHV video splitter will work all types of VGA displays such as LCD monitors, projectors or LCD TVs for presentation and public broadcasting. It also can be used for bench testing, data centers or tradeshow expo. It is also recommended for use with the graphics workstations.
Easy
Installation
This VGA splitter works on all Windows and Mac
OS platforms. All plug and play without driver installation needed.

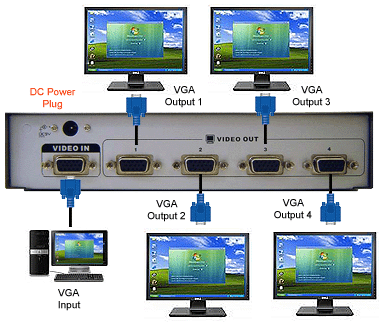

Simply plug the power supply and connect the VGA output from a computer. Then
connect the VGA outputs to the monitors or other VGA displays and the setup is
done.
Integrated Video Signal
Enhancement Technology
The input signal will be amplified and distributed via its
internal booster circuitry to ensure that both outputs are of identical quality to the
original computer input signal and also transmit the VGA signal effectively up to
180 ft away from the source location for best
performance.
The unit's ultra high 250 MHz bandwidth makes it possible to handle
VGA resolutions up to 1920x1440 pixels in 24/32-bit true color mode and maintain superior video integrity and provides
clear and sharp images.
Daisy Chain Units
It is very easy to expand the number of
display monitors. Simply daisy chaining multiple video splitter units together
if the installation requires more VGA displayed to be presented.
Video signal booster for
up to 210 feet without signal loss.
Impress your audience with high-resolution multi-screen presentations. This VGA video splitter is perfect for public video broadcasting, classrooms, tradeshows, or in-store displays where high quality video on several monitors is needed. Flexible and cost-effective solutions for remote monitoring at airlines, restaurants, production, control room, security surveillance etc.
 |
- Premium VGA splitter solution for video distribution to send one computer VGA signal to 4 monitors simultaneously.
- Maintain superior video integrity and provides clear and sharp images over long range.
- Perfect VGA signal booster amplifier for up to 210 feet without signal loss.
- Daisy chain capability. Able to daisy-chain multiple units to generate more outputs to expand the monitor pools for larger display setup.
- Compatible with all SVGA monitors, projectors and flat panel TVs with VGA inputs.
- Supports supreme high VGA resolution up to 1920x1440 pixels at 250MHz bandwidth.
- Easy cable setup in seconds. No software drivers needed.
- Allows companies to build highly scalable and reliable training or conference system.
- Works on all Windows and Mac hardware platforms.
- All metal casing in small form factor.
| VGA Input Connector | D-sub HD 15-Pin Female x 1 |
| VGA Output Connector | D-sub HD 15-Pin Female x 4 |
| Bandwidth | 250MHz |
| Max resolution support | 1920x1440 pixels Max |
| Power Supply | 120V AC With 9V DC 600mA DC Output |
| Dimension | 8"(W)x3"(D)x1.75"(H) |
- 4-Port VGA splitter
- AC/DC power adapter
- User manual
